It is packaged by precise positioning of fiber pigtail and focusing lens, which can transform the output light off fiber
into parallel Light beam (Gaussian beam) or couple external parallel light into the fiber, It can also be used alone to
achieve the required spot size m a specific position according to the predetermined divergence angle.

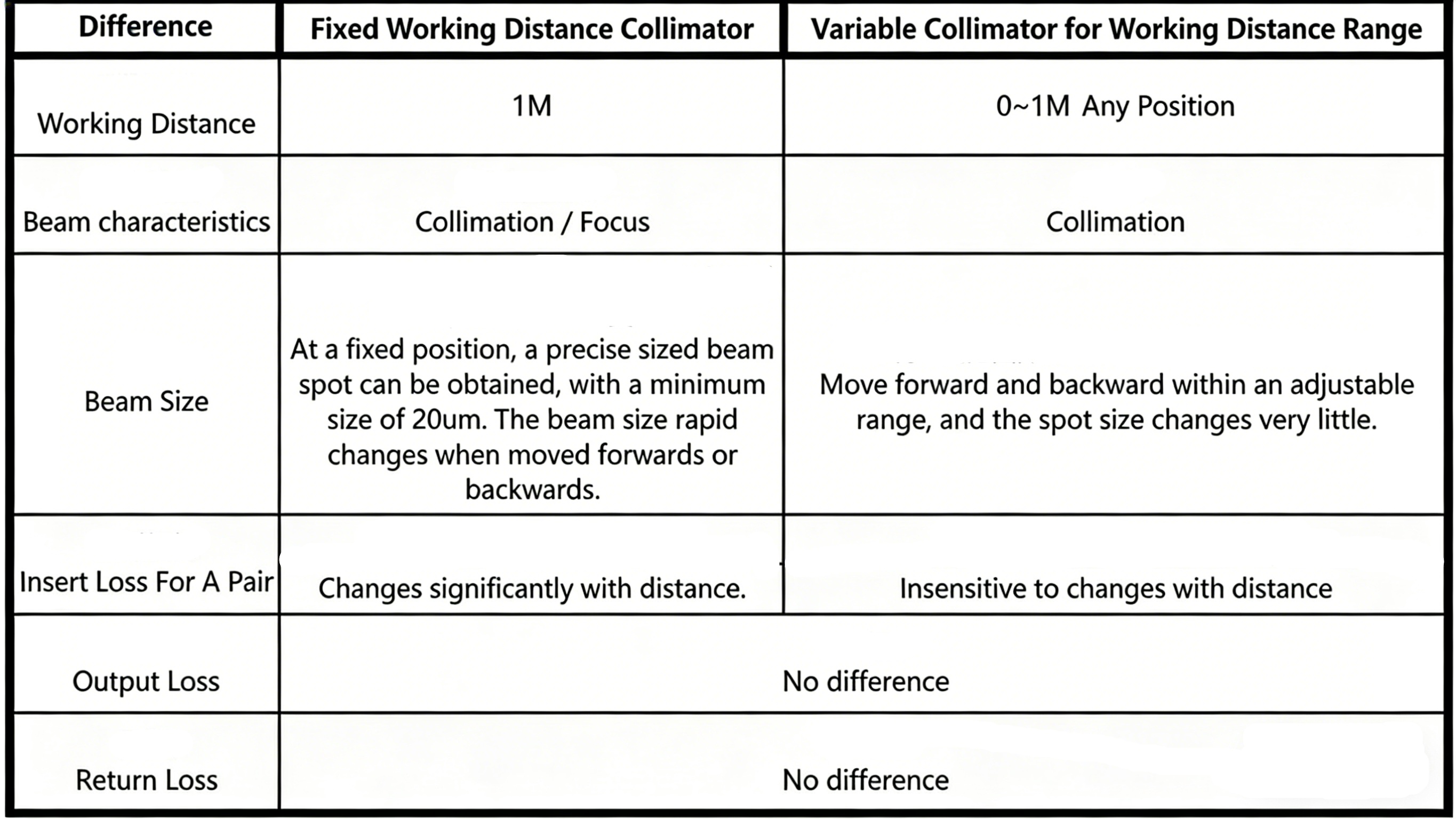

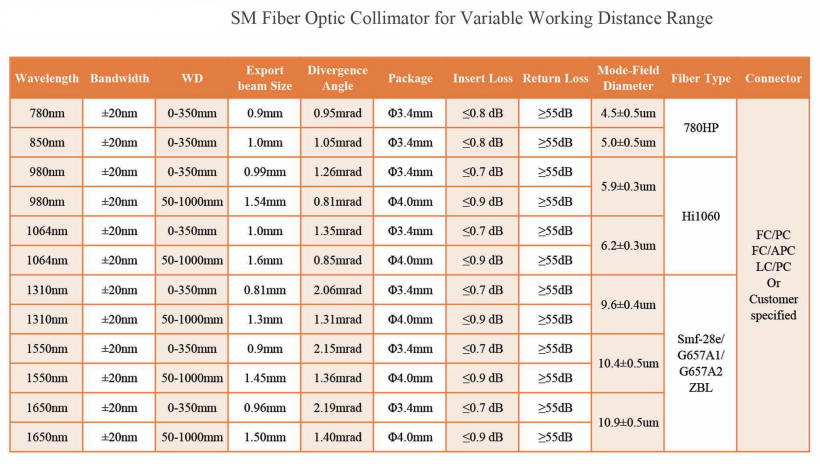

According to the working distance. it can be divided into fixed workings distance (fixed focus) collimator and Yari-able
collimator for working distance range. Conventional lenses or Grin lenses should be selected according to different
working distances. We recommend installing the collimator in an optical precision adjustment frame for adjustment
to ensure the best coupling efficiency.
Premium standard design: Adaptable to universal application scenarios
Our Standard Fiber Collimator is crafted with high-purity optical fibers and precision optical lenses, supporting a broad spectral range of 400-1700nm, covering UV, visible and NIR bands for versatile application compatibility. It is compatible with single-mode (SM, 9μm) and multimode (MM, 50/62.5μm) fibers, accommodating various light source requirements. The collimator features a standardized focal length (customizable) and beam divergence (<0.5mrad), ensuring compatibility with most standard optical systems. The optical design minimizes insertion loss and maximizes coupling efficiency, making it suitable for general-purpose collimation needs.
Precision manufacturing process: Ensuring stable standard performance
Our Standard Fiber Collimator is manufactured using automated production processes and strict quality control to ensure consistent batch performance. The fiber and lens are aligned with high precision to ensure concentricity error <1μm, maximizing coupling efficiency. The lens surface features broadband AR coating, The core performance advantages: suitable for general optical scenarios
Ultraopto's Standard Fiber Collimator features low insertion loss (≤0.3dB for SM fiber, ≤0.5dB for MM fiber) and high return loss (≥55dB), minimizing signal attenuation in optical systems. The collimator has excellent mechanical stability with vibration resistance up to 5g RMS, making it suitable for industrial and laboratory environments. It operates reliably across a wide temperature range (-40℃ to 85℃) and offers a long service life (>10,000 hours), ensuring consistent performance for long-term use. The standardized design ensures high compatibility with optical components of different brands, reducing system integration complexity and cost.
Full-scenario application coverage:
Empowering general optical equipment Our Standard Fiber Collimator is widely applied in communication, industrial and scientific fields. In optical communication systems and fiber optic networks, it enables efficient coupling between fibers and active components. For laser modules and industrial laser equipment (cutting, marking, welding), it provides precise collimation for laser beams. In fiber sensing and optical metrology, it ensures stable signal transmission for general-purpose measurement. The collimator also finds use in laboratory test setups, educational equipment and consumer electronics, delivering reliable performance for diverse general-purpose optical applications.
Customized services:
Meeting personalized needs As a professional manufacturer of fiber optic components, Ultraopto offers fully customized Standard Fiber Collimator solutions to meet your unique application requirements. Our experienced R&D team can tailor key parameters including wavelength range (400-1700nm), fiber type (SM/MM), focal length, beam divergence and connector type (FC/PC, FC/APC, SMA-905). We support custom housing designs and power handling capabilities (up to 10W) for specialized applications. All custom collimators undergo multi-stage strict quality inspection, including insertion loss testing, beam quality measurement and environmental stability assessment, with a detailed quality report provided.
Quality Assurance and Technical Support:
Your Trusted Choice Backed by advanced standard optical technology and a complete quality control system, Ultraopto ensures stable batch supply and consistent product quality. Our production processes adhere to international fiber optic standards, with each collimator subjected to rigorous testing using optical power meters and beam profilers. We provide professional technical consultation on collimator selection, system integration and performance optimization, helping you achieve optimal results for your general-purpose optical application. Whether you need standard collimators for mass production or custom solutions for specialized systems, Ultraopto’s Standard Fiber Collimator delivers exceptional value and reliability.
For more detailed technical parameters, product quotation information or custom design solutions for our Ultraopto Standard Fiber Collimator, please contact our professional sales and technical team through the official website, and we will provide you with efficient, personalized and professional optical solutions.
