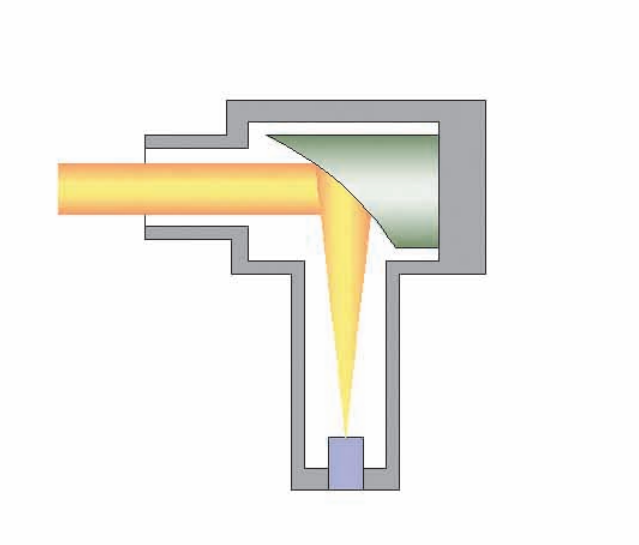

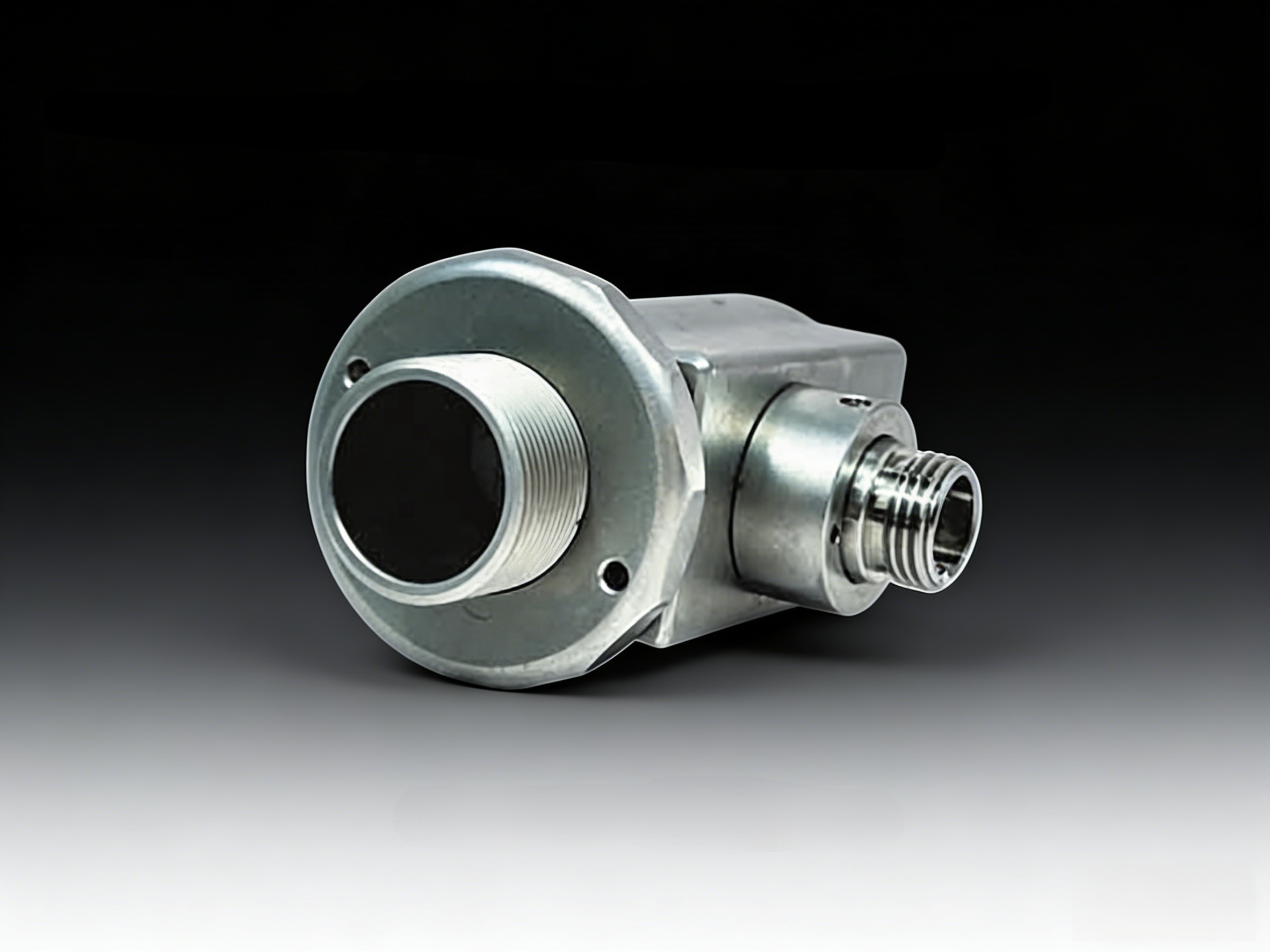

Using a 90° off-axis parabolic mirror, the focal length of this mirror remains constant over a wide wavelength range. Therefore, it is the ideal choice for collimating wide spectral wavelength light when precise focal adjustment is required, serving as collimated multicolor light source or coupling device A silver coating is applied to the lens surface to enhance the output efficiency within the wavelength range of 450 nm to 20 um. This collimator can be equipped with FC/PC, FC/APC, or Sma905 connectors

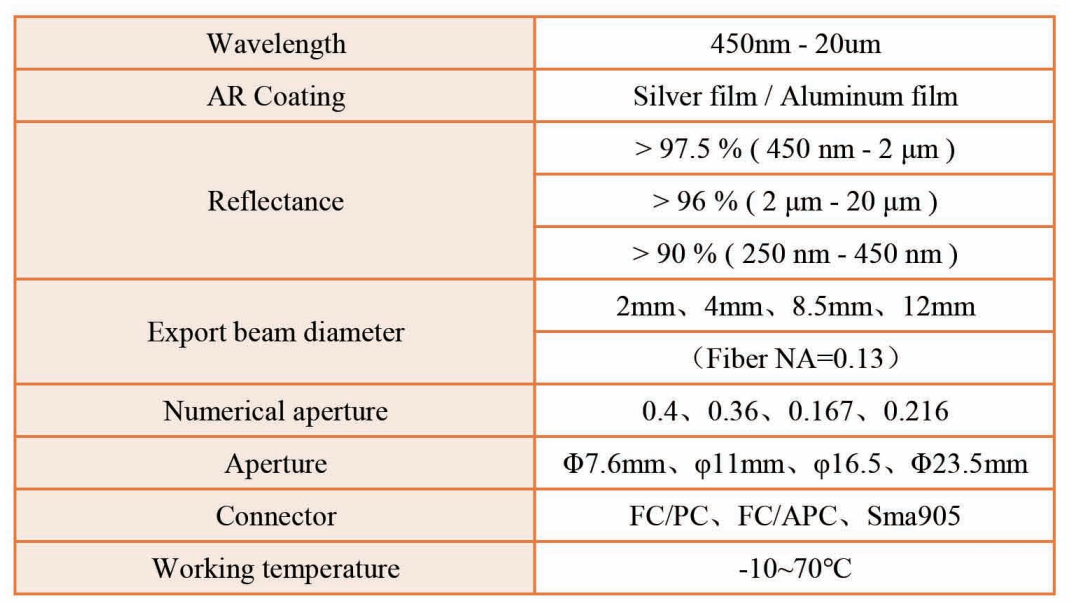

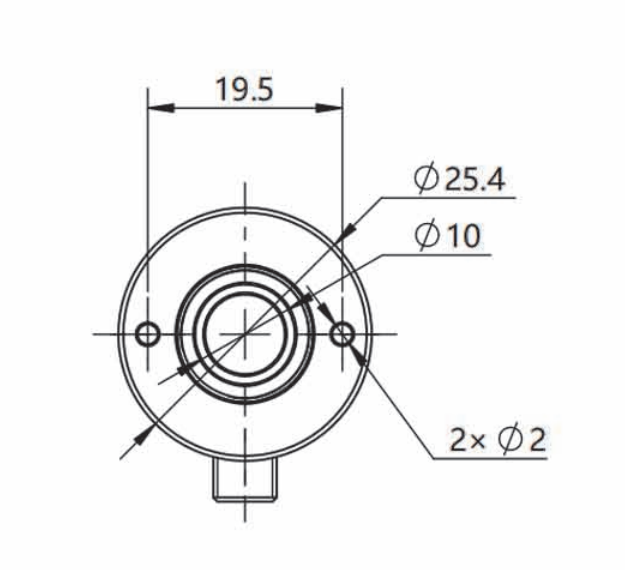

Feature:
Surface coated wit silver film (450 nm - 20 μm), gold film (450 nm - 20 um), or aluminum film (250 - 450nm) with high reflectivity
Protective film coated on the reflective film to increase environmental suitability
Reflective working mode with a wide bandwidth spectrally dispersive design
Suitable for multi-color light collimation or coupling into optical fibers
Standard interface design for easy installation and use
Abolishable in spectral analysis, fluorescence analysis gas telemetry. water quality analysis, food safety, and medical analysis instruments
High-Quality Broadband Design: Meeting Multi-Wavelength Requirements
Crafted with broadband optical design and high-purity fused silica fiber cores, our Broadband Fiber Collimator supports an ultra-wide spectral range from 400nm (UV) to 1700nm (NIR), with bandwidth tolerance of ±30nm for each center wavelength. The collimator utilizes aspheric C-lens or GRIN lens with optimized refractive index distribution, minimizing wavelength-dependent aberration and ensuring uniform beam divergence across the entire broadband range. The fiber core is available in various sizes (9μm single-mode, 50/62.5μm multimode) to match different light source requirements, with end-face AR coating reducing reflection loss to below 0.3%.
Precision Manufacturing Process: Ensuring Broadband Stability
Our Broadband Fiber Collimator is manufactured using precision alignment technology and hermetic encapsulation processes. The fiber and lens are aligned with sub-micron precision to ensure concentricity error <1μm, maximizing coupling efficiency for all wavelengths in the broadband range. The collimator features three optional broadband AR coating options: 400-650nm, 650-1050nm and 1050-1650nm, each with maximum reflection <0.5% in their respective ranges. The metal housing (stainless steel or aluminum) is filled with thermal conductive silicone to optimize heat dissipation, enabling stable operation across -40℃ to 85℃ temperature range.
Core Performance Advantages: Adapting to Broadband Application Scenarios
Ultraopto’s Broadband Fiber Collimator boasts low insertion loss (≤0.2dB for single-mode, ≤0.3dB for multimode) and high return loss (≥60dB), minimizing signal attenuation in broadband systems. The collimator delivers stable beam divergence (0.06-0.14mrad) and waist beam size (10.2-15.2mm), ensuring consistent performance across all wavelengths. It features excellent pointing stability and mechanical durability, with vibration resistance tested to 10g RMS (20-2000Hz). The broadband design eliminates the need for multiple wavelength-specific collimators, reducing system complexity and cost for multi-wavelength applications.
Full-Scenario Application Coverage: Empowering Multi-Wavelength Systems
Our Broadband Fiber Collimator is widely applied in communication, industrial and scientific fields. In WDM systems and 400G/800G high-speed optical modules, it enables efficient coupling of multiple wavelengths for high-capacity data transmission. For precision spectroscopy and environmental monitoring, it provides stable collimation for multi-wavelength analysis of materials and pollutants. In multi-wavelength laser systems, it serves as a universal collimator for laser processing and scientific research. The collimator also finds use in optical sensing, quantum communication and test equipment, delivering reliable broadband performance for diverse high-precision applications.
Customized Services: Meeting Personalized Needs
As a professional manufacturer of fiber optic components, Ultraopto offers fully customized Broadband Fiber Collimator solutions to meet your unique application requirements. Our experienced R&D team can tailor key parameters including spectral range (customizable subsets of 400-1700nm), fiber type (single-mode/multimode, polarization-maintaining options), connector type (FC/PC, FC/APC, SMA-905) and lens focal length. We support custom housing designs for space-constrained applications and specialized coating optimization for specific wavelength bands. All custom collimators undergo multi-stage strict quality inspection, including insertion loss testing, bandwidth verification and environmental stability assessment, with a detailed quality report provided.
Quality Assurance and Technical Support: A Trustworthy Choice
Backed by advanced broadband optical technology and a complete quality control system, Ultraopto ensures stable batch supply and consistent product quality. Our production processes adhere to international fiber optic standards, with each collimator subjected to rigorous testing using optical spectrum analyzers and beam profilers. We provide professional technical consultation on collimator selection, system integration and performance optimization, helping you achieve optimal results for your broadband application. Whether you need standard collimators for optical communication or custom solutions for spectroscopy, Ultraopto’s Broadband Fiber Collimator delivers exceptional value and reliability.
For more detailed technical parameters, product quotation information or custom design solutions for our Ultraopto Broadband Fiber Collimator, please contact our professional sales and technical team through the official website, and we will provide you with efficient, personalized and professional optical solutions
