Its focal length a dustmen Rane is from 6nmn to I8mm, During the adjustment process, it can maintain a might levees collimation of the light beam, ensuring that the collimation accuracy is not affected when the beam size is changed. This collimator has a precise zoom function and can also perform high-precision adjustment of the divergence angle of the emitted collimated light, enabling the light beam to be focused at any position between the maximum waist distance and the closest focusing distance of0.3m, ensuring that the free-space laser beam is coupled into the optical fiber with ahigh coupling efficiency. As a universal device, it is applicable to a variety of application scenarios, effectively reducing the time cost for users to screen for suitable fixed-focus fiber collimators, The design based on the air-gap lens makes it awe lower aberrations compared with aspheric lens collimators, with the Mf2 factor closer to I. smaller wavefront errors, and high-quality and stable light beam output

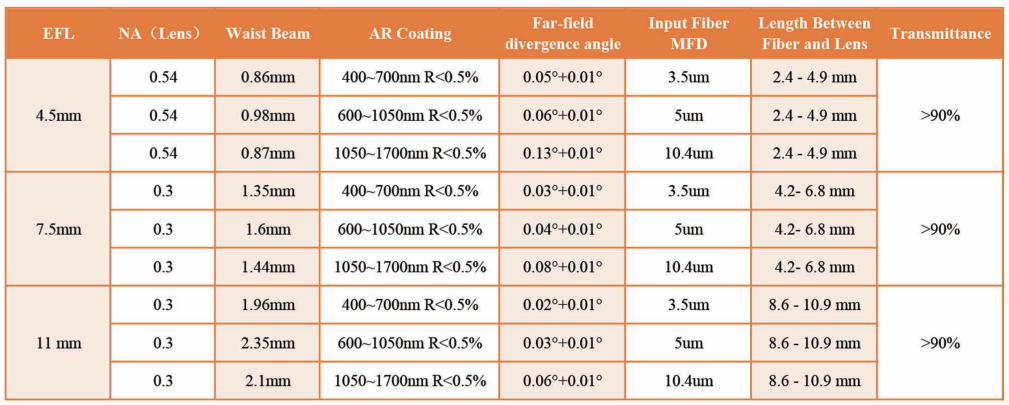

Features:
Zoom focal length range、6mm-18mm
Low Wavefront Error、2/10 Typical (P-V at 633 nm for: Fiber NA=0.14)
Pointing Stability During Zooming、FC/PC、FC/APC、<1mrad: SMA905、<4mrad
Three AR-Coated Lens Options400nm-700nm、650nm-1050nm、 1050nm-1650mm

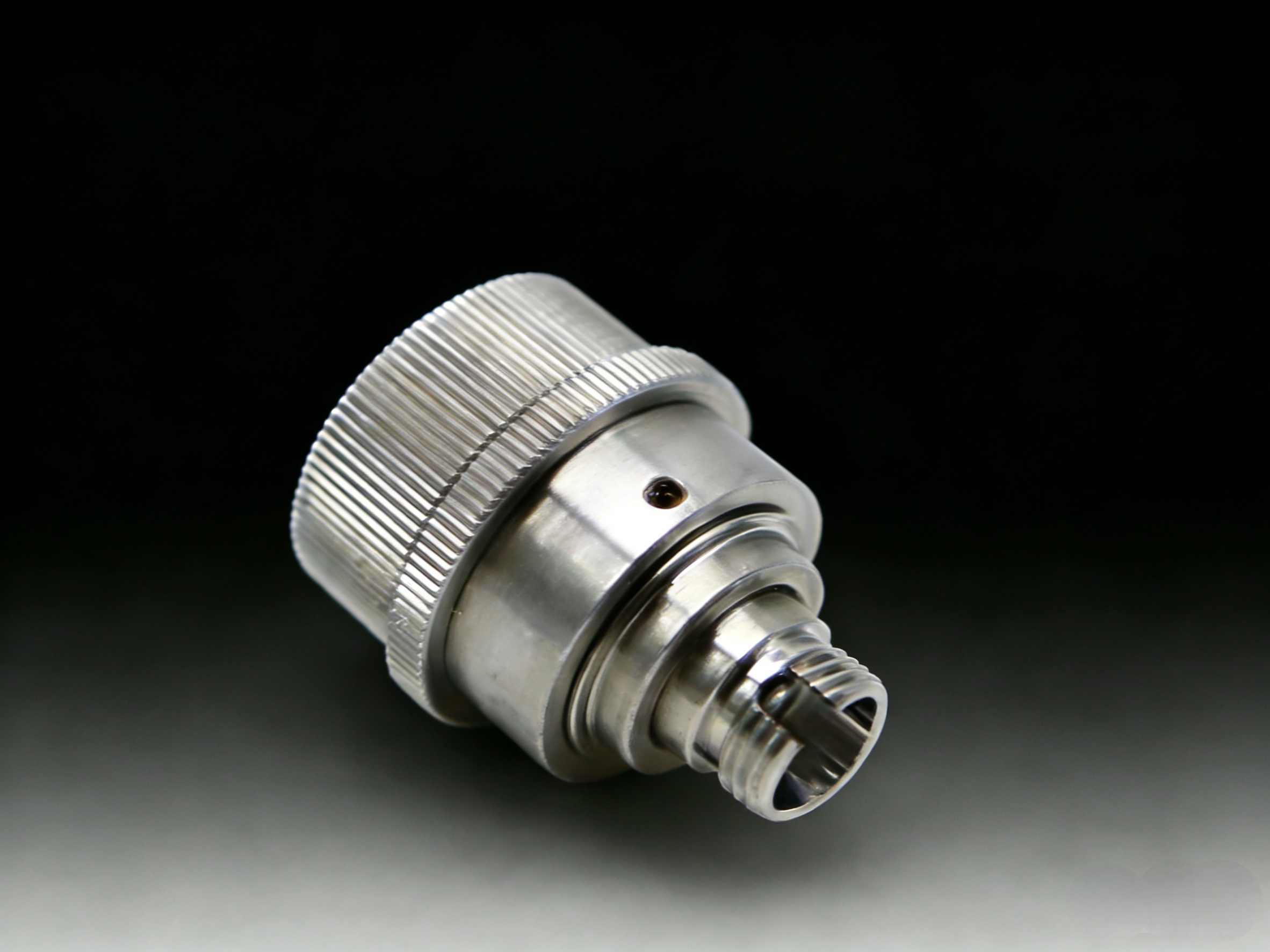

Premium zoom design: Achieving flexible focal length adjustment
Featuring an air-spaced lens design and a high-precision zoom mechanism, our Zoom Fiber Collimators provide an adjustable focal length ranging from 6mm to 18mm, allowing for flexible beam size control to meet various application requirements. The collimator employs high-quality optical lenses with a low wavefront error (typically λ/10 at 633nm), ensuring superior beam quality compared to aspheric lens collimators. The zoom mechanism features precision gears and guides for smooth focal length adjustment, with pointing stability maintained below 1mrad for FC/PC/APC connectors and <4mrad for SMA 905 connectors during zooming.
Precision manufacturing process:

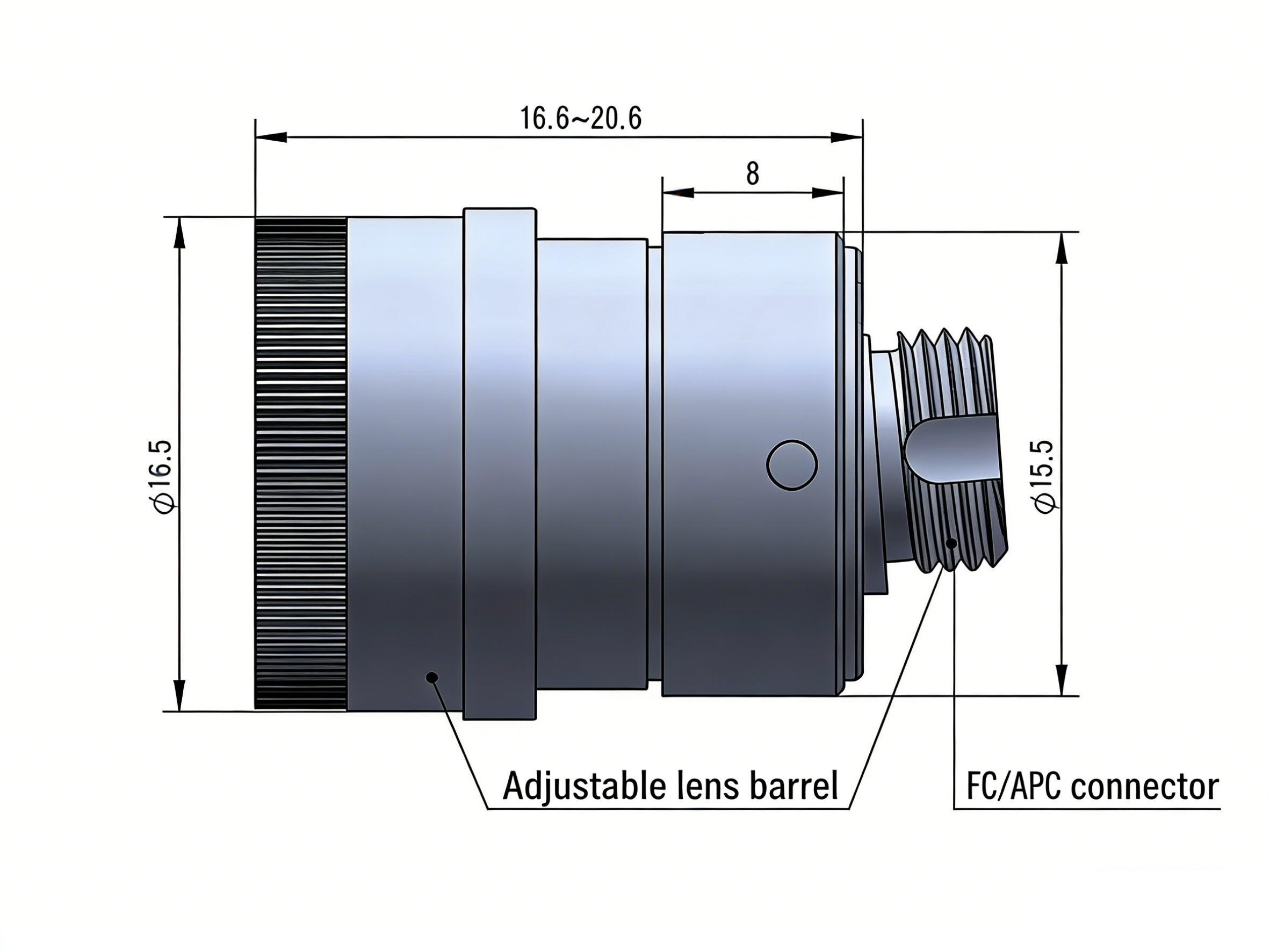

Ensuring zoom stability Our Zoom Fiber Collimators are manufactured using high-precision machining and alignment technology to ensure consistent performance across the entire zoom range. The collimator incorporates three broadband AR coating options optimized for different spectral ranges: The wavelength ranges are 400-650nm, 650-1050nm and 1050-1650nm, each with a maximum reflection of less than 0.5%. The housing has internal SM05 threading and external SM1 threading, compatible with ø1/2" and ø1" lens tubes, facilitating easy integration with standard optical mounts. The closest focusing distance is 0.3m, allowing flexible use as both a collimator and coupler.
Core performance advantages: Adaptation to dynamic optical scenarios
Ultraopto's Zoom Fiber Collimators feature a high numerical aperture (up to 0.25) and nearly Gaussian output from single-mode fibers, ensuring excellent beam quality. The variable focal length design eliminates the need for multiple fixed-focus collimators, saving time and cost in multi-application setups. The collimator delivers low insertion loss (≤0.3dB) and high return loss (≥55dB), minimizing signal attenuation in optical systems. It offers excellent off-axis performance for large multimode fibers and supports both collimation and coupling modes, enhancing versatility. The compact design fits inside any ø1.2" mount for easy system integration.
Full-scenario application coverage:
Empowering flexible optical systems Our Zoom Fiber Collimators are widely applied in research, testing and industrial fields. In optical test equipment and laboratory setups, they provide flexible beam adjustment for prototype verification and multi-parameter testing. For dynamic optical systems such as adaptive optics and laser scanning devices, they enable real-time focal length optimization. In laser communication and sensing systems, they offer adjustable beam size for different transmission distances. The collimator also finds use in educational equipment, optical instrumentation and custom optical setups, delivering reliable performance for diverse dynamic applications.
Customized services:
Meeting personalized needs As a professional manufacturer of adjustable optical components, Ultraopto offers fully customized Zoom Fiber Collimator solutions to meet your unique application requirements. Our experienced R&D team can tailor key parameters including focal length range (customizable beyond 6-18mm), spectral range, connector type (FC/PC, FC/APC, SMA 905), coating specifications and housing design. We support custom mounting options and integration with specialized optical systems. All custom collimators undergo multi-stage strict quality inspection, including zoom stability testing, beam quality measurement and environmental assessment, with a detailed quality report provided.
Quality Assurance and Technical Support:
Your Trusted Choice Backed by advanced zoom optical technology and a complete quality control system, Ultraopto ensures stable batch supply and consistent product quality. Our production processes adhere to international optical component standards, with each collimator subjected to rigorous testing using laser interferometers and beam profilers. We provide professional technical consultation on collimator selection, zoom mechanism operation and system integration, helping you achieve optimal results for your dynamic optical application. Whether you need standard collimators for testing equipment or custom solutions for research, Ultraopto’s Zoom Fiber Collimators deliver exceptional value and reliability.
For more detailed technical parameters, product quotation information or custom design solutions for our Ultraopto Zoom Fiber Collimators, please contact our professional sales and technical team through the official website, and we will provide you with efficient, personalized and professional optical solutions.
