UltraOpto - Capabilities | Flat Optics ProcessingWe specialize in high-precision Flat Optics Processing for glass, fused silica, sapphire, CaF and other optical materials, providing one-stop manufacturing from raw material cutting to finished substrate delivery for window plates, planar mirror substrates, optical flats and custom flat optical components. Our processing covers UV/VIS/IR wavelength applications, with core advantages of ultra-smooth surface, micron-level dimensional control and laser-grade surface quality, fully meeting the strict requirements of semiconductor, laser, aerospace, medical and scientific research fields.

 Flat Optics Processing

Core Processing Advantages

End-to-end in-house manufacturing, no outsourcing, strict quality control in every process

Professional processing for brittle/high-purity optical materials (193nm fused silica, CaF, sapphire)

Customizable processing for standard/large-aperture/irregular flat optics

Laser-grade sub-surface damage control, ultra-low surface roughness

Compliant with ISO 10110 optical standards, full traceability of test data



Flat Optics Processing Workflow | Equipment | Precision Specifications

(Matching Process Display Pictures: It is recommended to use real factory pictures for each process, with the picture description corresponding to the process name, such as "Multi-wire Saw for Raw Material Cutting", "High-precision Double-sided Lapping Machine")

Flat Optics Processing

Processing Step

Core Processing Equipment

Key Precision Indicators

Process Picture Matching Suggestion

1. Raw Material Cutting

Multi-wire Saw, Inner/Outer Diameter Saw,   Laser Cutter (for micro-sheets)

Thickness tolerance: ±0.5 mm

Shape dimension tolerance: ±0.3 mm

Cutting surface: No obvious chipping,   damage layer controllable

Close-up of multi-wire saw cutting fused   silica/glass block, with finished semi-finished round/square sheet

2. Shape Grinding & Chamfering

CNC Optical Shape Grinder, Automatic   Chamfering Machine, Peripheral Grinding Machine

Outer diameter/side length tolerance:   ±0.05 mm

Thickness tolerance: ±0.1 mm

Chamfer: 0.1–0.5 mm × 45° (customizable)

Parallelism: <1   arcmin

Surface roughness: Ra < 0.8 μm

CNC grinder processing the outer shape of   flat optics, automatic chamfering machine working on the edge of window plate

3. Double-sided Rough Lapping

High-precision Double-sided Lapping   Machine (Planetary Structure)

Thickness tolerance: ±0.02 mm

Flatness: <5 μm

Parallelism: <30   arcsec

Thickness uniformity: ±0.01 mm

Surface roughness: Ra < 0.4 μm

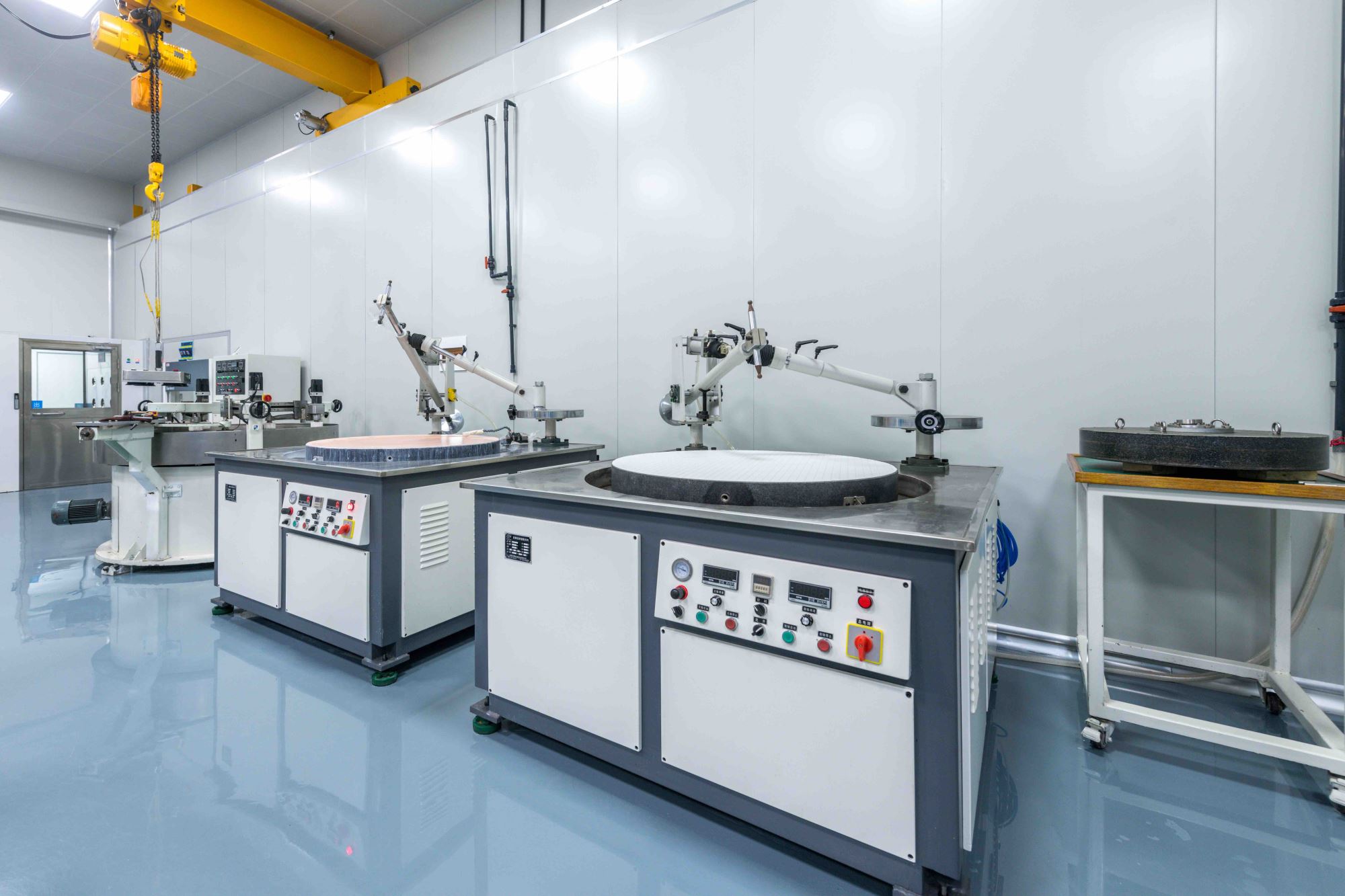

Double-sided lapping machine with   planetary jig, lapping of glass/fused silica flat sheet

4. Double-sided Fine Lapping

Precision Planetary Double-sided Lapping   Machine (with fine grinding slurry system)

Thickness tolerance: ±0.01 mm

Flatness: 1–3 μm

Parallelism: 10–30 arcsec

Surface roughness: Ra < 0.1 μm

Subsurface damage (SSD): Controllable, to   be removed by polishing

Fine lapping process of fused silica   substrate, close-up of lapping slurry and workpiece fit

5. Double-sided Precision Polishing

Ultra-precision Double-sided Polishing   Machine, High-speed Ring Polisher, Planetary Polishing Machine (with   dedicated polishing pad/ slurry)

Thickness tolerance: ±0.005 mm (±0.001 mm   for high-precision custom)

Flatness: λ/10~λ/20 @633 nm (up to λ/50   for ultra-high precision)

Parallelism: ≤5 arcsec (up to ≤2 arcsec   for custom)

Surface quality: 10-5/20-10 (ISO 10110),   laser-grade 5-2 optional

Surface roughness: Ra < 0.5 nm

SSD: <1 μm   (laser-grade), <0.5 μm for ultra-high power laser

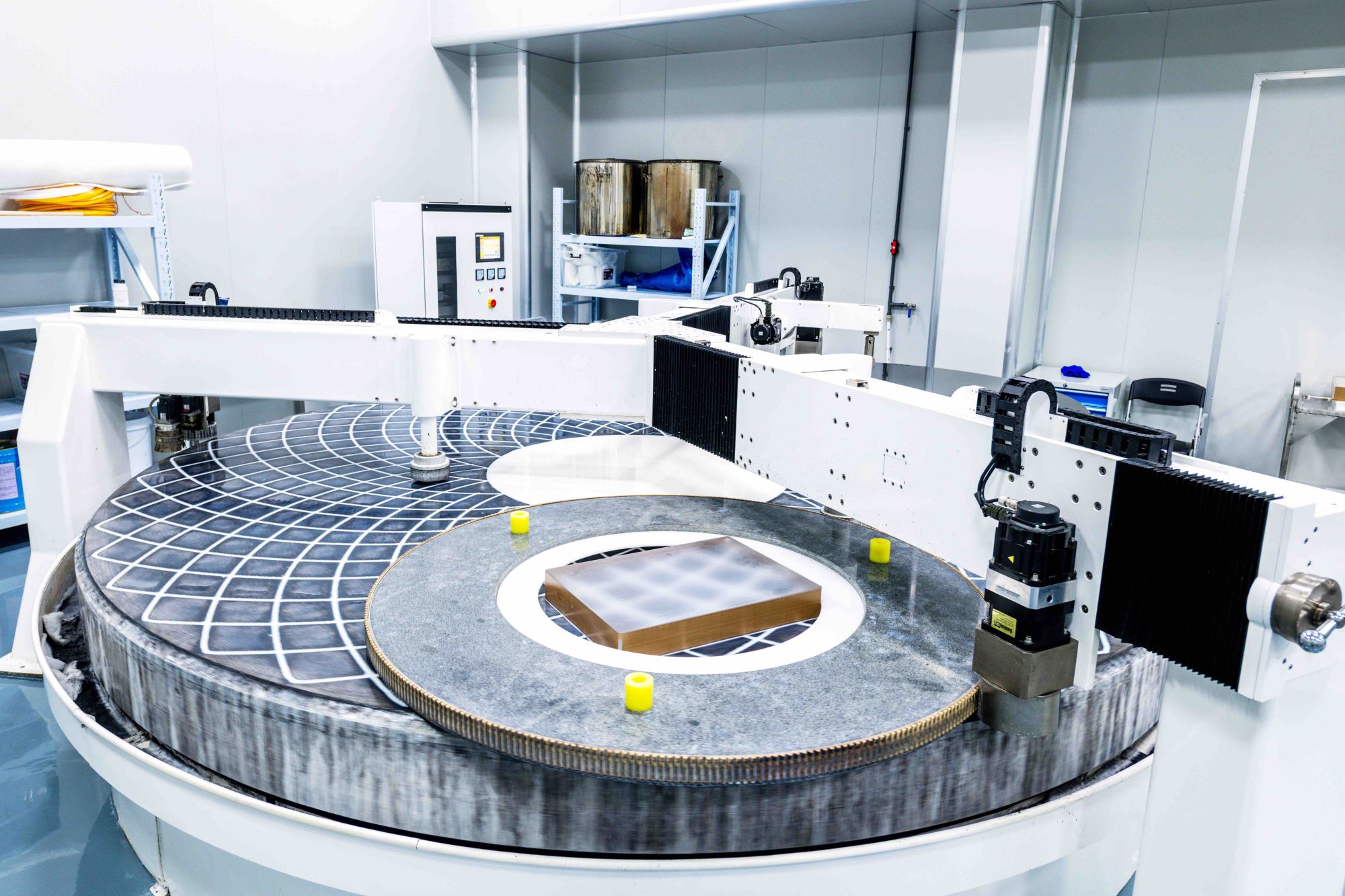

Core polishing equipment working scene,   ultra-smooth finished surface of fused silica window plate (with light   reflection effect)

6. Precision Cleaning

Full-automatic Optical Component Cleaning   Machine (ultrasonic + roller brush), Class 100/1000 Cleanroom Drying Table,   Pure Water Circulation System

Particle size control: ≤0.2 μm

Cleanliness: Meet vacuum coating   requirements

Surface state: No polishing powder/oil   residue, water-free mark

Environment: Class 100 cleanroom   operation for final cleaning

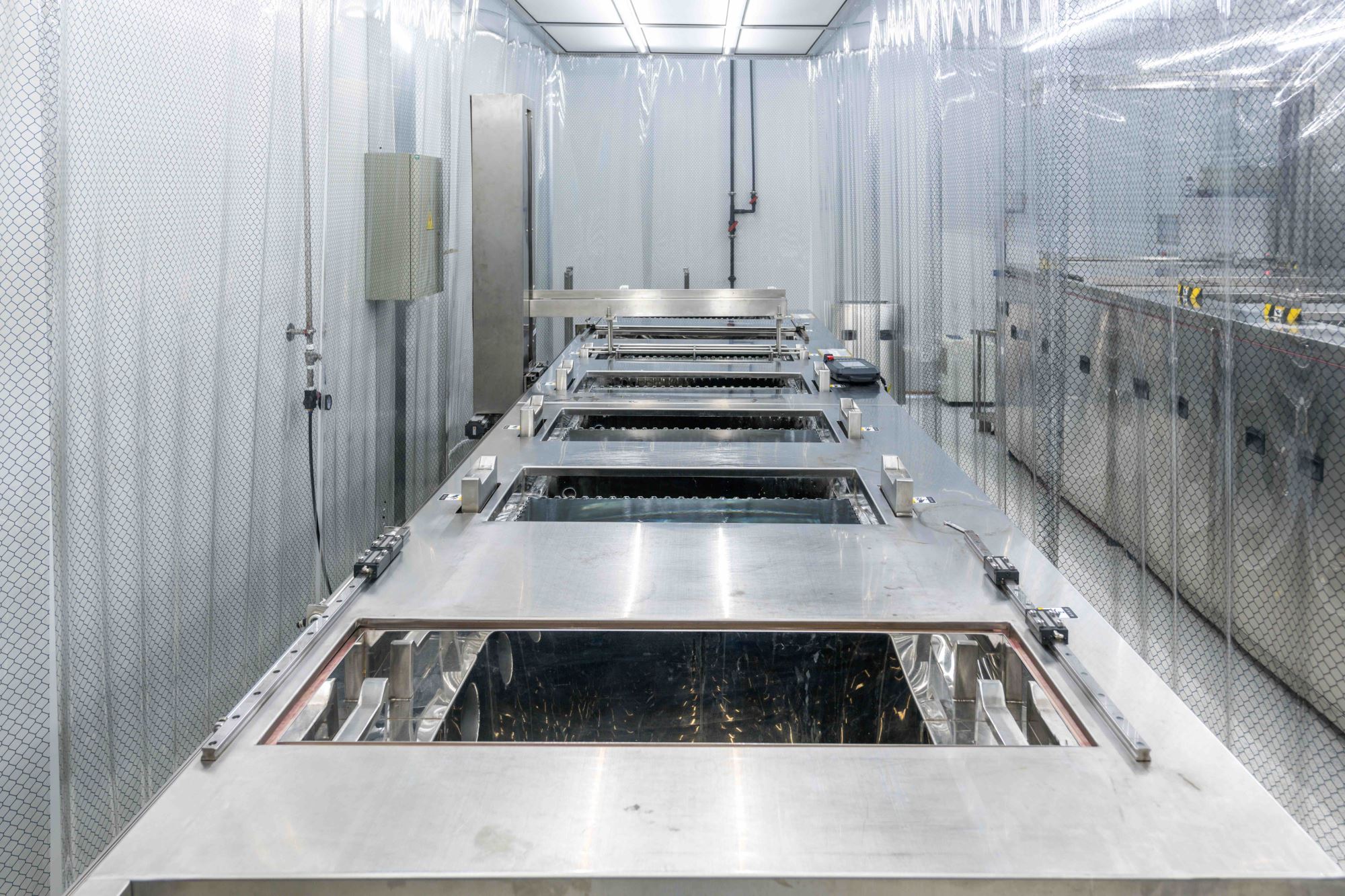

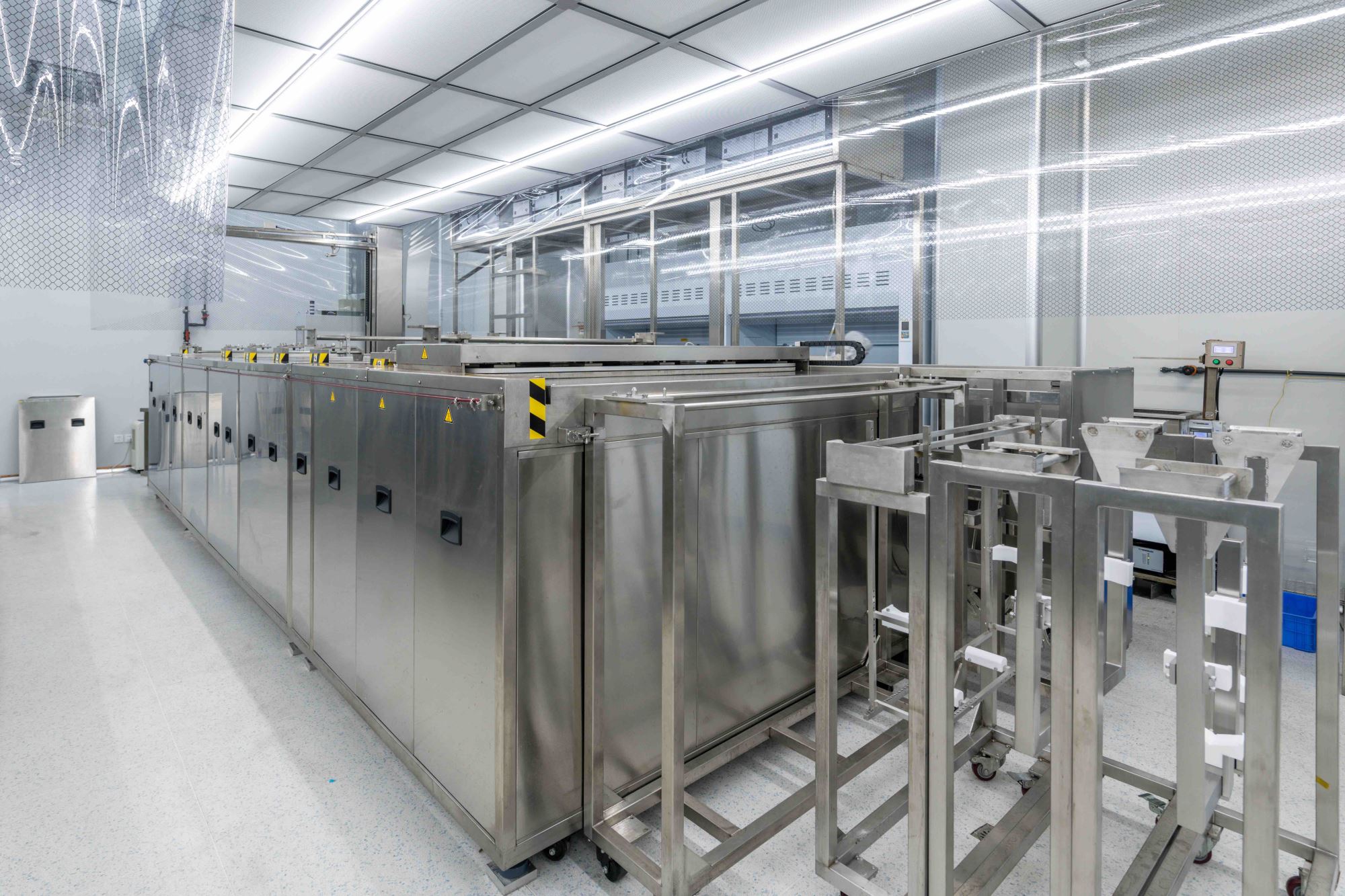

Automatic cleaning machine internal   structure, cleanroom drying table with finished flat optics

7. Metrology & Final Inspection

Zygo Laser Interferometer,   Autocollimator, High-precision Thickness Gauge, Scratch-Dig Tester, Surface   Profilometer/AFM, 2D Image Measuring Instrument

Flatness: Calibrated by Zygo   interferometer, full surface scanning

Parallelism: Autocollimator test,   accuracy ≤1 arcsec

Thickness: Test repeatability ±0.0001 mm

Surface defect: 100% scratch-dig   inspection (ISO 10110)

Dimension: Full size detection, tolerance   traceability

Engineer operating Zygo interferometer to   test flatness, scratch-dig tester for surface defect inspection







Key Process Supporting Capabilities

Material Expertise for Flat Optics Processing

We master the professional processing technology of various optical materials for flat components, and customize processing parameters according to material characteristics to avoid chipping, cracking and thermal deformation:

Flat Optics Processing

Optical Glass:

N-BK7, Borofloat, K9, B270


High-purity Quartz/Fused Silica:

193nm/248nm DUV grade fused silica, synthetic fused silica


Crystal Materials:

Sapphire (AlO), Calcium Fluoride (CaF), Magnesium Fluoride (MgF), Si, Ge


Low Thermal Expansion Material:

ULE, Zerodur (for ultra-stable flat optics)



Custom Processing Capabilities Size Range:

Standard 5 mm – 300 mm (diameter/side), custom large-aperture up to 500 mm


Special Shapes:

Irregular flat optics, rectangular long strip window plates, custom aperture flat sheets


Precision Custom:

Ultra-high flatness (λ/50), ultra-tight parallelism (≤2 arcsec), laser-grade surface quality (5-2)

Batch Support: Small-batch prototyping (1-100 pcs), mass production (1000+ pcs), fast delivery for urgent orders



Application Scenarios of Processed Flat Optics

The high-precision flat optical components processed by our factory are core parts of high-end optical equipment, widely used in:

Flat Optics Processing

Semiconductor & Lithography:

193nm/248nm DUV lithography window plates, wafer inspection flat optics


Laser Systems:

Laser window sheets, planar laser reflectors, high-power laser beam delivery components


Aerospace & Defense:

Satellite optical window plates, airborne imaging flat components, night vision device optics


Medical & Life Sciences:

Medical imaging window plates, diagnostic instrument optical flats, laser medical components


Scientific Research & Metrology:

Spectroscopy window plates, precision metrology optical flats, interferometer components


Industrial Inspection:

Machine vision window plates, non-destructive testing flat optics, laser marking components
