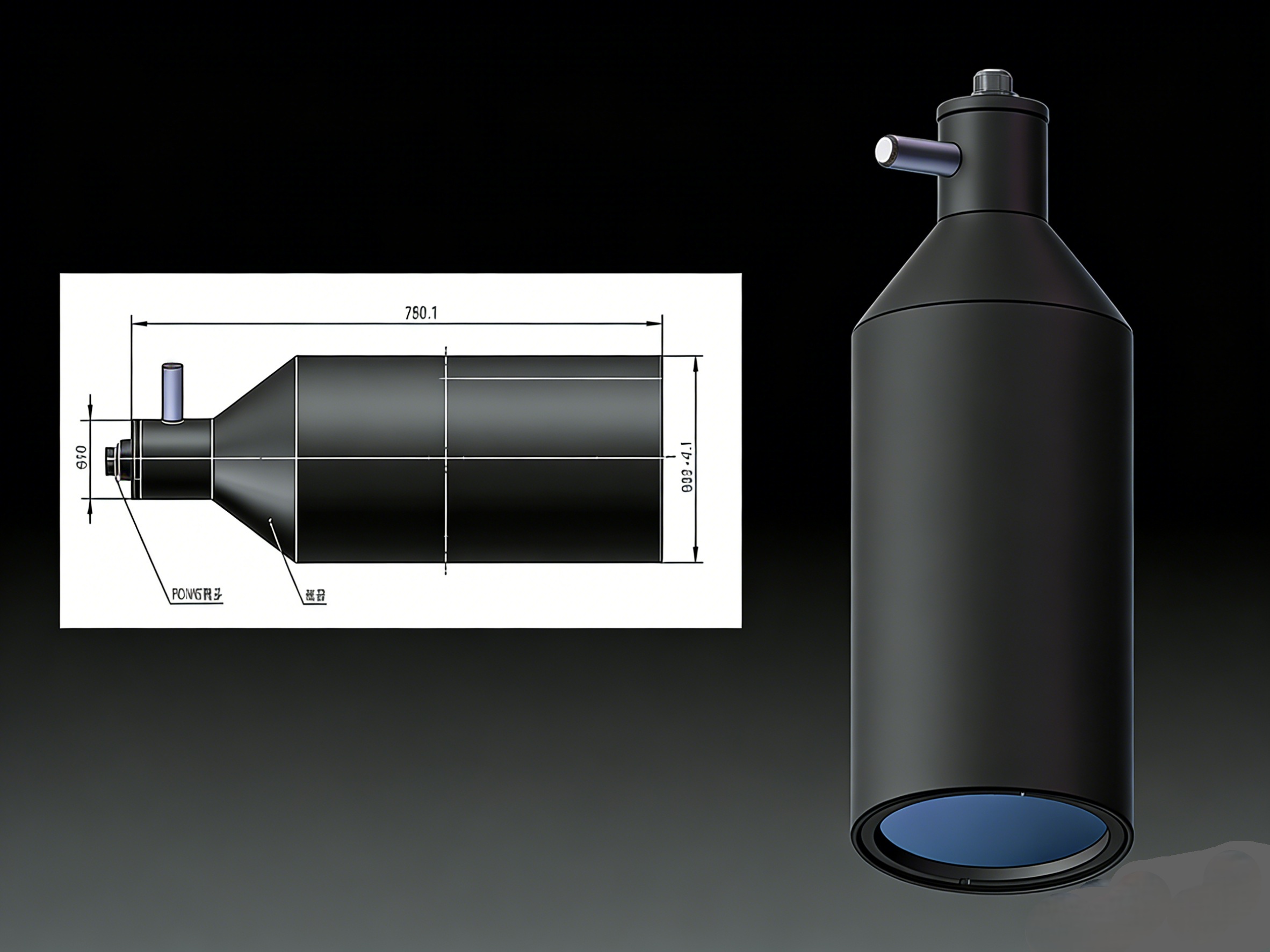

For laser collimation or coupling at up to 300 meters, we've carefully designed the collineating lens with a Foca length of around 1 50 mm, This effectively collimates and shapes the fiber-emitted laser beam, yielding a high-quality beam with a larger beam. The lens uses am advanced multi-air-spaced lens design It outputs a beam of extremely high quality (M' approaching 1) with minimal wavefront error, making it perfect for long-distance laser transmission and pulsed laser emission, Within the effective range, it ensures excellent collimation, with an approximately Gaussian energy distribution, a clear and sharp spot, und no obvious diffraction, thus enhancing laser prefinance.
Features:
Suitable for the collimation or coupling from optical 6ber to free space
Maintain good collimation characteristics within a range of 300 meters.
The maximum input fiber numerical aperture (NA) that can be coupled is 0.24
Three AR-Coated Aspheric Lens Options：400-700nm、650-1050mm、1050-1650mm
Diffraction-limited wavefront error
It is recommended to select Ultraopto's standard patch cords to improve the repeatability and consistency of the parameters.
Optimized for 300m transmission: Achieving precise mid-range transmission

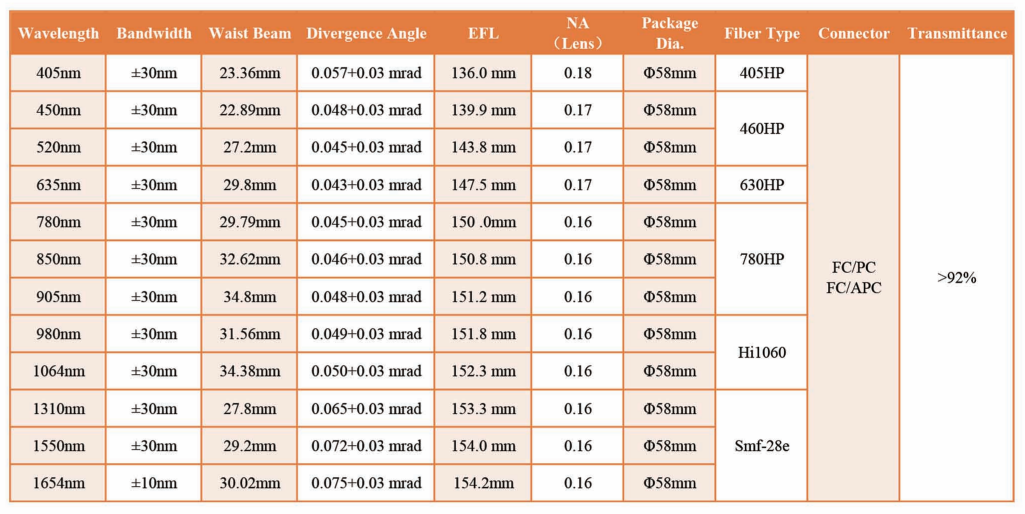

Our 300m Long Distance Collimator is designed with an optical system specifically optimized for 300m transmission, achieving ultra-low beam divergence (0.043-0.075mrad) to minimize beam spread over the target distance. The collimator uses a long focal length lens (136-154.2mm) to produce a collimated beam with a waist size of 22.89-34.8mm, ensuring sufficient signal intensity at 300m. The fiber core is available in single-mode (9μm) and multimode (50/62.5μm) options, optimized for the 1200-1700nm spectral range with ±30nm bandwidth. The optical path is precisely calibrated to ensure maximum coupling efficiency at the 300m target distance.
Precision manufacturing process: Ensuring mid-range stability
Our 300m Long Distance Collimator is manufactured using precision alignment and encapsulation technology to ensure consistent performance over 300m. The lens is made from high-purity fused silica with an ultra-smooth surface (Ra <0.1nm) to minimize light scattering, which is crucial for mid-range signal preservation. The collimator features an AR coating optimized for the 1200-1700nm range. The reflection loss is reduced to below 0.3% and the transmission efficiency is enhanced. The housing is made of corrosion-resistant aluminum and precisely machined to ensure mechanical stability, while internal damping materials reduce vibration-induced beam deviation. The standard connector is FC/APC, with SMA-905 available as an option for specific system compatibility.
Core performance advantages: suitable for 300m mid-range scenarios
Ultraopto's 300m Long Distance Collimator offers outstanding mid-range performance with beam divergence strictly controlled between 0.043-0.075mrad, ensuring precise beam delivery at 300m. The collimator delivers low insertion loss (≤0.2dB for single-mode, ≤0.3dB for multimode) and high return loss (≥55dB). minimizing signal attenuation in 300m links. It features excellent pointing stability (<1mrad) and mechanical durability, making it suitable for industrial and outdoor applications. The collimator operates reliably across -20℃ to 70℃ temperature range and offers IP65 dustproof and waterproof protection, adapting to diverse environmental conditions. Additionally, it supports both collimation and reverse coupling modes for flexible system design.
Full-scenario application coverage:
Empowering mid-range optical devices Our 300m Long Distance Collimator is widely applied in industrial, commercial and scientific fields. In short-to-medium range optical communication links, it enables reliable data transmission over 300m for industrial networks and building-to-building communication. For laser distance measurement and positioning systems, it provides precise collimation for 300m-range distance sensing. In industrial monitoring and security systems, it delivers stable beam projection for 300m-range detection and surveillance. The collimator also finds use in laser levelers, optical test equipment and short-range LIDAR systems, delivering reliable performance for diverse 300m-range applications.
Customized services:
Meeting personalized needs As a professional manufacturer of mid-range optical components, Ultraopto offers fully customized 300m Long Distance Collimator solutions to meet your unique application requirements. Our experienced R&D team can tailor key parameters including operating wavelength (400-1700nm), fiber type (single-mode/multimode), connector type (FC/PC, FC/APC, SMA-905), beam divergence and waist size. We support custom housing designs for specialized installation environments and can optimize the collimator for specific 300m-range applications. All custom collimators undergo multi-stage strict quality inspection, including 300m beam testing, coupling efficiency measurement and environmental stability assessment, with a detailed quality report provided.
Quality Assurance and Technical Support:
Your Trusted Choice Backed by advanced mid-range optical technology and a complete quality control system, Ultraopto ensures stable batch supply and consistent product quality. Our production processes adhere to international fiber optic standards, with each collimator subjected to rigorous testing using 300m-range laser measurement systems. We provide professional technical consultation on collimator selection, 300m system design and installation optimization, helping you achieve optimal results for your mid-range application. Whether you need standard collimators for communication links or custom solutions for distance measurement, Ultraopto’s 300m Long Distance Collimator delivers exceptional value and reliability.
For more detailed technical parameters, product quotation information or custom design solutions for our Ultraopto 300m Long Distance Collimator, please contact our professional sales and technical team through the official website, and we will provide you with efficient, personalized and professional optical solutions.
