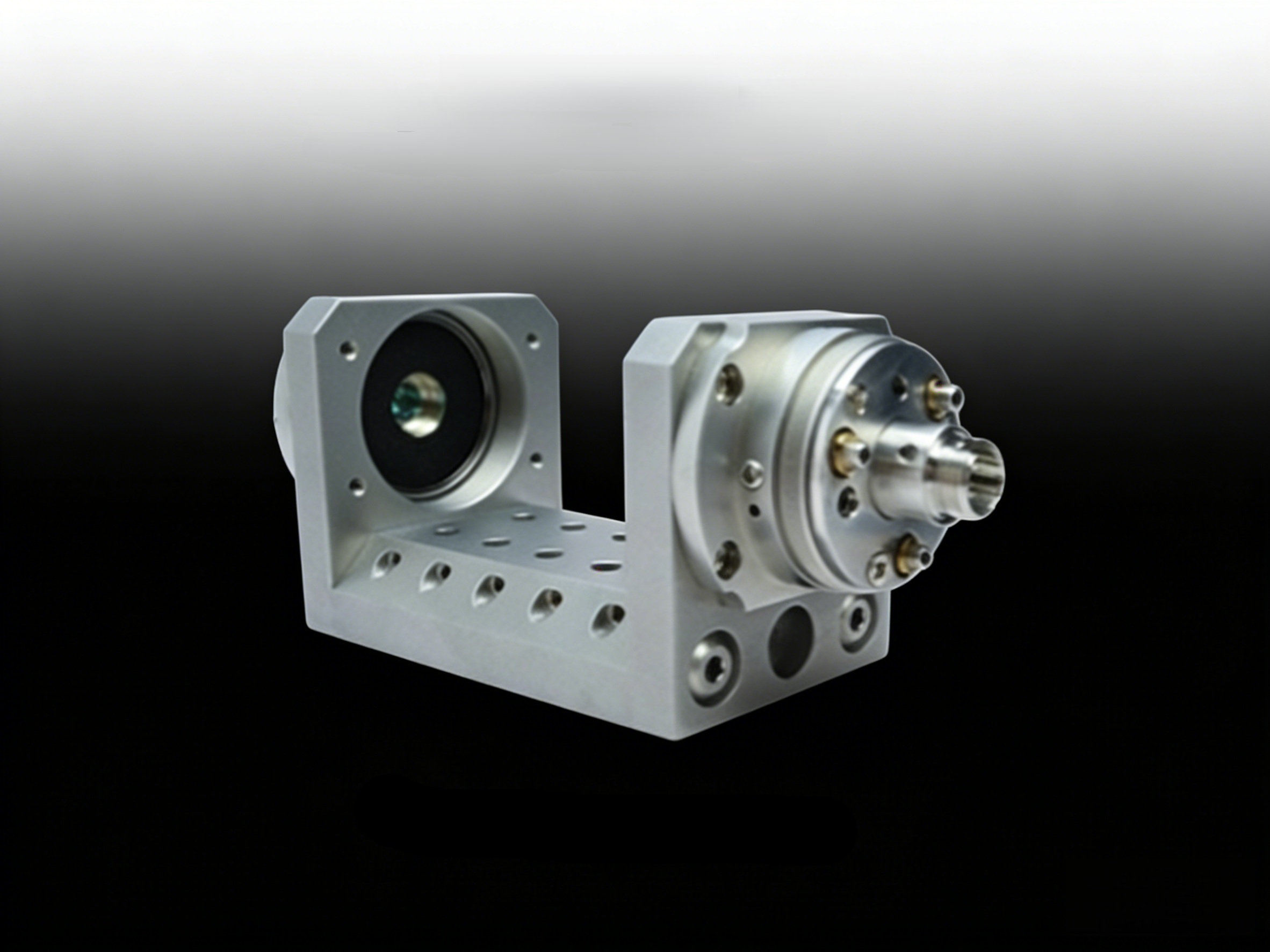

When the connector and the fiber remain stationary, the intimate lens has five alignment degrees of freedom: tinea alignment in the X and Y directions, pitch and yaw alignment angles, and adjustment of the Z<axis using both pitch and yaw. The travel range in the X and Y directions is ±0.7 mm, the travel range in the Z direction is greater than 2 mum, and the pitch and yaw adjustment range is ±4e. It has good structural stability and high coupling efficiency, If the wave length of the light source is changed, the collimator needs to be re-adjusted to achieve higher coupling efficiency
Features:
Connecting fiber collimated output or coupling free space collimated light into fiber.
Five Degrees of Freedom Plus Rotational Adjustment

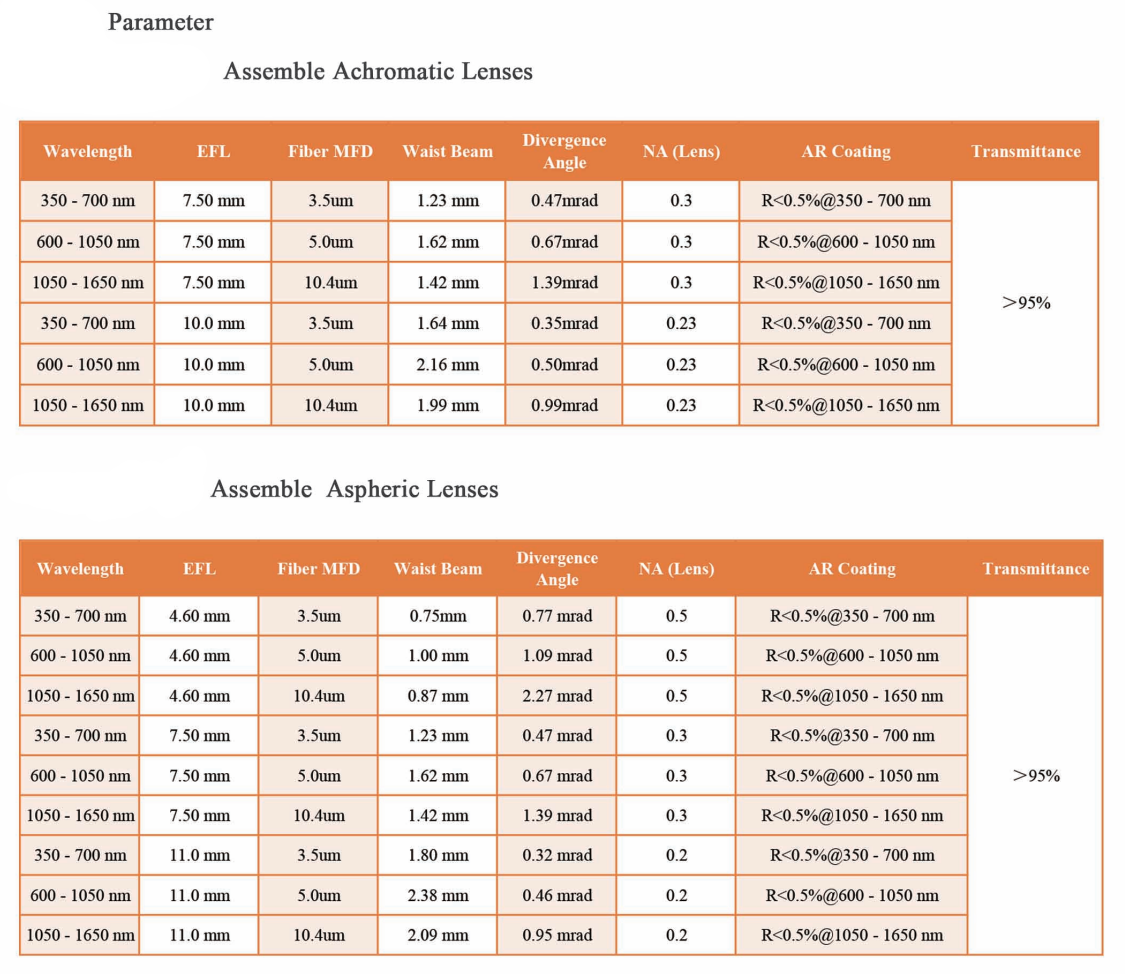

Optional combination of an aspherical lens and an achromatic lens
Three Connector Options：FC/PC、FC/APC、SMA905
Three AR-Coated Lens Options、
400-700nm、650-1050mm、 1050-1650nm
When used in combination with Ultraopto standard jumpers, it can improve coupling efficiency and ensure good repeatability

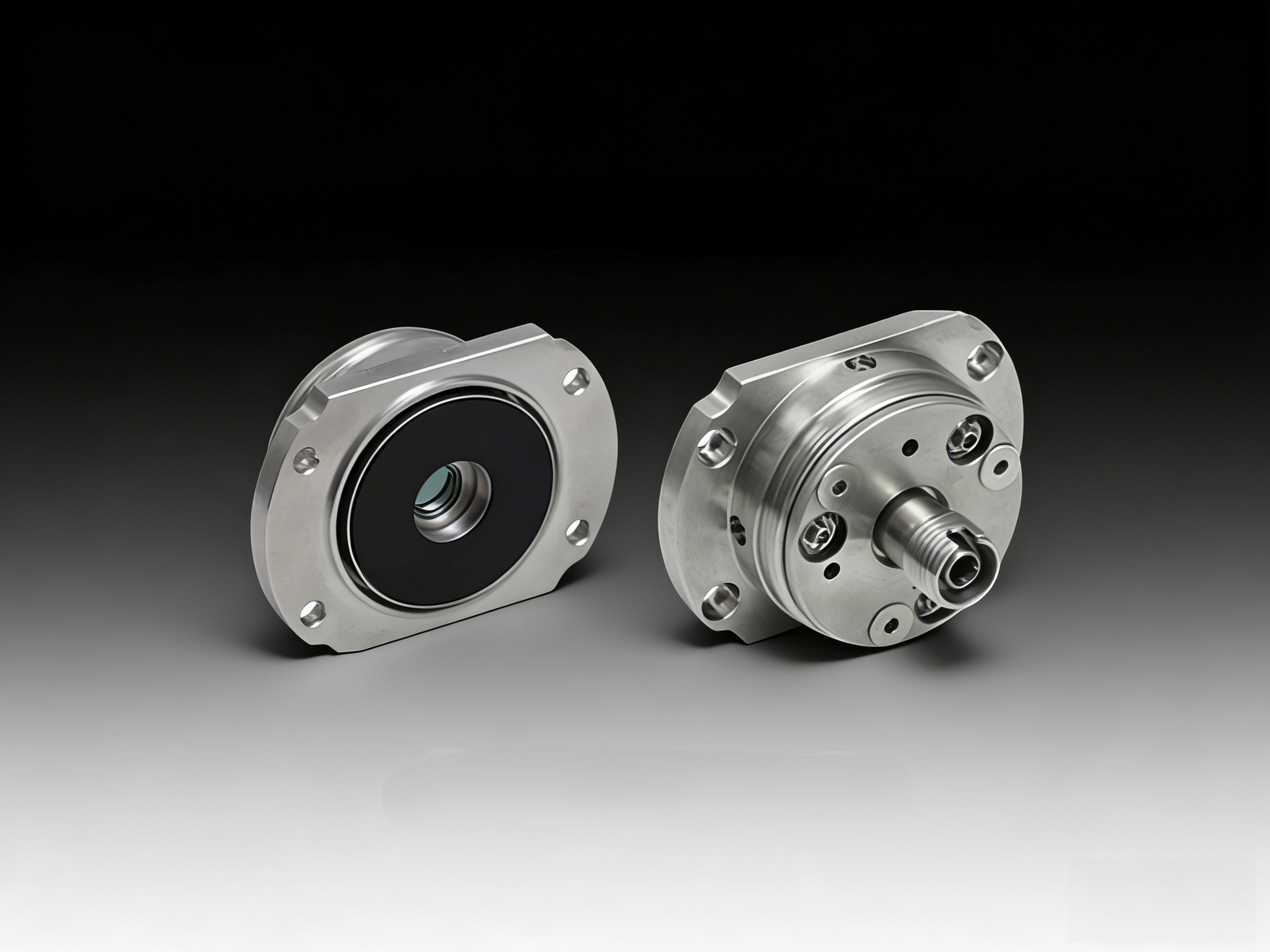

High-quality multi-dimensional adjustment design:
Achieve precise alignment Crafted with ultra-stable micropositioning mechanisms and high-quality optical lenses, our Fiber Port Collimator offers comprehensive adjustment capabilities for precise alignment. The collimator supports 5 degrees of freedom adjustment (X/Y linear alignment, tip/tilt angular alignment, Z-axis distance adjustment) plus bulkhead rotation for polarization-maintaining (PM) fiber alignment, provided by Thorlabs. It is available with either aspheric or achromatic doublet lenses, with effective focal lengths (EFL) ranging from 2.0mm to 11.0mm to meet various application needs. The device is compatible with single-mode (SM), multimode (MM), and polarization-maintaining (PM) fibers, supporting wavelengths from 350nm to 5μm for wide application flexibility.
Precision manufacturing process:
Ensuring stable performance Our Fiber Port Collimator is manufactured using high-precision machining and robust assembly processes to ensure long-term stability. The lens is mounted in a captive cell with custom-machined threading for accurate, precise positioning, minimizing beam pointing error during adjustment. The collimator features AR coating options for visible, NIR and MIR wavelength ranges, The reflection loss is reduced to below 0.5% per surface. The compact aluminum alloy housing integrates an ultra-stable locking mechanism, which secures the alignment position without drift after adjustment. The device comes with hex keys and dust caps for convenient operation and protection, and is compatible with standard HCP post mounts for easy integration into optical setups.
Core performance advantages: suitable for precise coupling scenarios
Ultraopto’s Fiber Port Collimator boasts exceptional alignment precision with a resolution of 0.012" (0.32mm) per revolution for linear adjustments and 1.32° (23mrad) per revolution for angular adjustments. The collimator delivers diffraction-limited performance when used with compatible connectors, ensuring high coupling efficiency and superior beam quality. It features low insertion loss (≤0.3dB) and high return loss (≥60dB), minimizing signal attenuation in fiber optic systems. The multi-dimensional adjustment range (±0.7mm for X/Y, ±0.4mm for Z, ±4° for tip/tilt) provides ample flexibility for precise alignment in complex optical setups. Additionally, the collimator’s compact design and lightweight construction make it ideal for space-constrained laboratory environments.
Full-scenario application coverage:
Empowering precision optical systems Our Fiber Port Collimator is widely applied in scientific research, industrial testing and optical manufacturing fields. In laboratory setups and optical testing equipment, it enables precise alignment for fiber-to-free space coupling and collimation experimentsThorlabs. For fiber optic component manufacturing and assembly, it provides accurate alignment for testing and calibration processes. In quantum communication and precision spectroscopy systems, it ensures high-efficiency optical coupling for sensitive measurements. The collimator also finds use in educational equipment, optical instrumentation and custom optical setups, delivering reliable performance for diverse precision alignment needs.
Customized Services: Meeting Personalized Needs
As a professional manufacturer of precision optical components, Ultraopto provides fully customized Fiber Port Collimator solutions to meet your unique application requirements. Our experienced R&D team can tailor key parameters including lens type (aspheric/achromatic), focal length (2.0mm - 11.0mm+), connector type (FC/PC, FC/APC, SMA-905), and more. wavelength range and coating specifications. We support custom adjustment ranges and locking mechanisms for specialized applications, and can provide compatibility with non-standard fiber types. All custom collimators undergo multi-stage strict quality inspection, including alignment precision testing, coupling efficiency measurement and environmental stability assessment, with a detailed quality report provided.
Quality Assurance and Technical Support:
Your Trusted Choice Backed by advanced micropositioning technology and a complete quality control system, Ultraopto ensures stable batch supply and consistent product quality. Our production processes adhere to international optical component standards, with each collimator subjected to rigorous testing using precision alignment tools and optical power meters. We provide professional technical consultation on collimator selection, alignment procedures and system integration, helping you achieve optimal results for your precision optical application. Whether you need standard collimators for laboratory use or custom solutions for specialized coupling systems, Ultraopto’s Fiber Port Collimator delivers exceptional value and reliability.
For more detailed technical parameters, product quotation information or custom design solutions for our Ultraopto Fiber Port Collimator, please contact our professional sales and technical team through the official website, and we will provide you with efficient, personalized and professional optical solutions.
