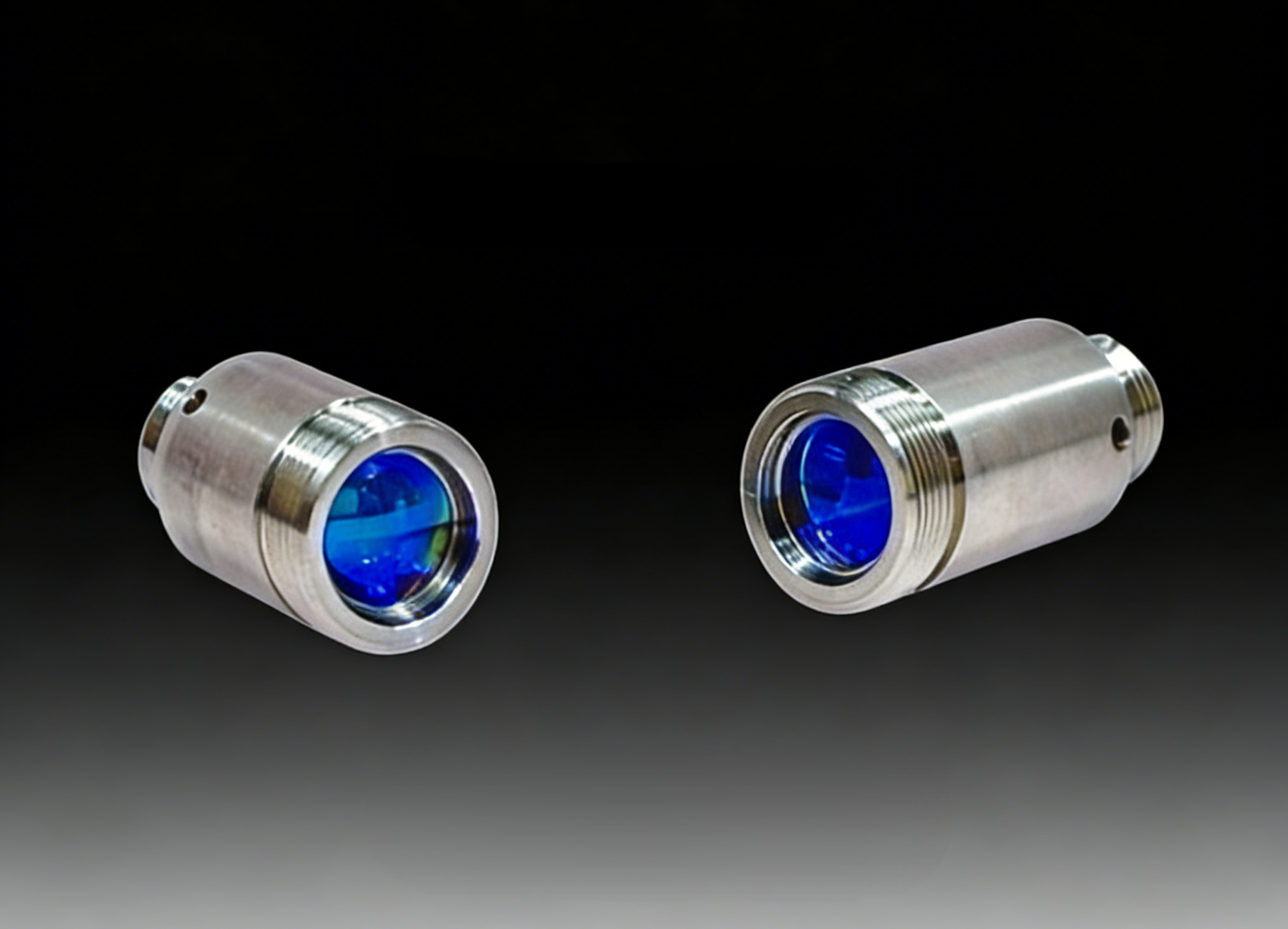

It consists of a group of long focal length collimating optical systems with chromatic aberration and distortion compensation design, making the focal length of the collimator insensitive to wave ingot bandwidth. The divergent light beam emitted from the optical fiber, providing a good collimating effect and beam shape within a contain distance range, The op-tical surfaces of the lens group are coated with anti-reflection film to minimize surface reflection, The relative position of the lens and fiber is precisely adjusted to ensure that the deviation angle of the emitted light is within 0.39, and standardized manufacturing processes ensure stable consistency of the product.

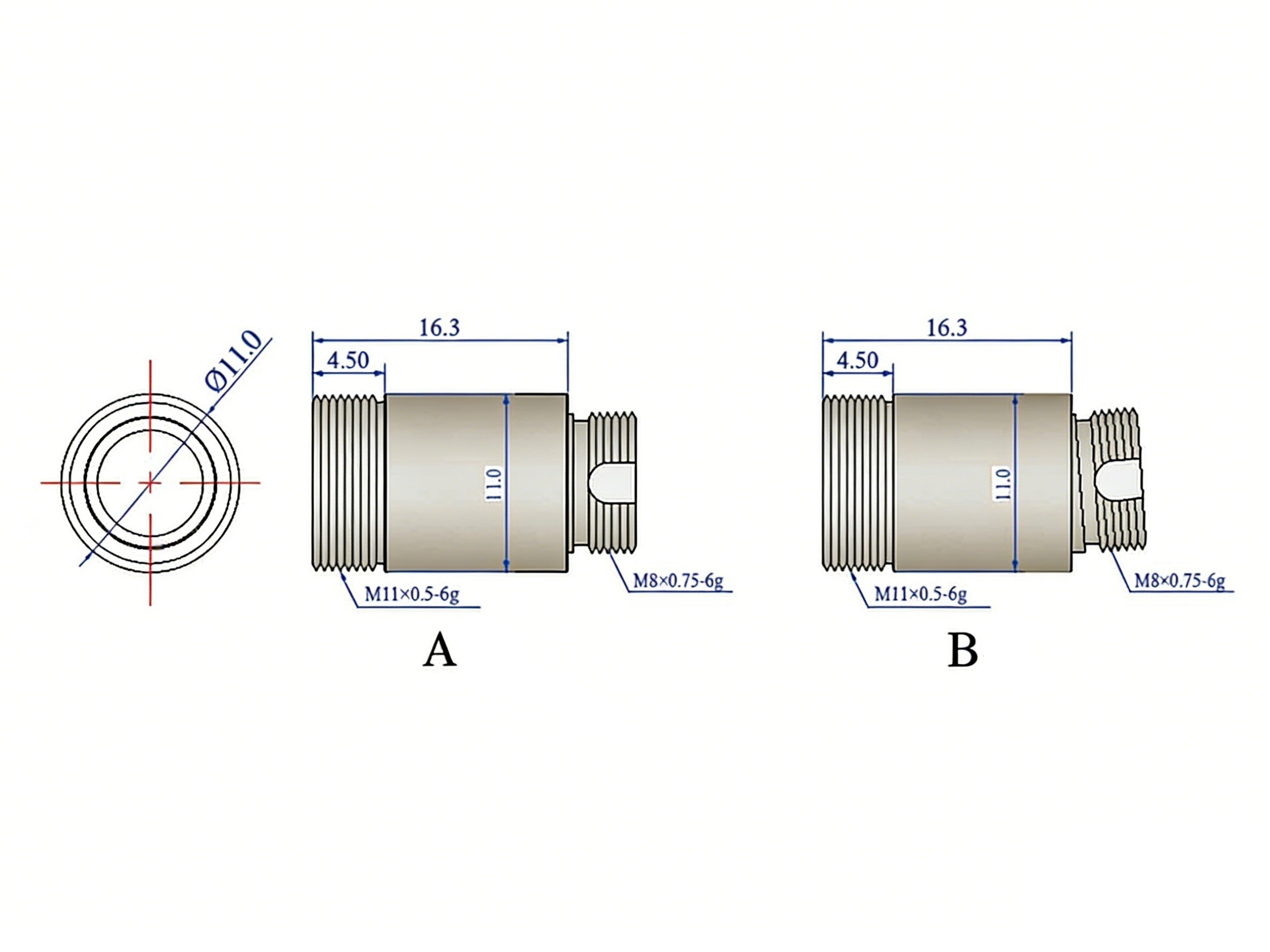

Features:Three Connector Options：
FC/PC、FC/APC、SMA905,Compatible with Narrow and Wide Key Connectors,Compact structure, Convenient for installation,The focal length has little influence on the wave length, thus facilitating the handling of adjacent wave-lengths,It is recommended to use it together with Ultraopto standard patch cords to achieve better interchange-ability and repeatability
High-quality achromatic design:
Fully corrects color deviation Crafted with precision-bonded dual-element lenses (convex+concave configuration), our Achromatic Lenses Collimator effectively corrects both axial and lateral chromatic aberration. The lens combination leverages materials with different dispersion rates to ensure red, green and blue wavelengths converge at the same focal point, Precision manufacturing process: Ensuring compact and stable performance Our Achromatic Lenses Collimator is manufactured using advanced glass bonding and precision alignment technology to ensure consistent performance. The dual-element lenses are hermetically bonded with high-transmittance optical cement, ensuring structural integrity and thermal stability. The lens surfaces feature broadband anti-reflection (AR) coatings, Reducing reflection loss to below 0.2% per surface and enhancing overall transmittance. The collimator achieves ultra-compact dimensions (down to Φ2mm × 1.57mm) through precision micro-machining, making it ideal for space-constrained devices like AR glasses and mini projectors. Fiber alignment is controlled within ±0.1μm to maximize coupling efficiency.

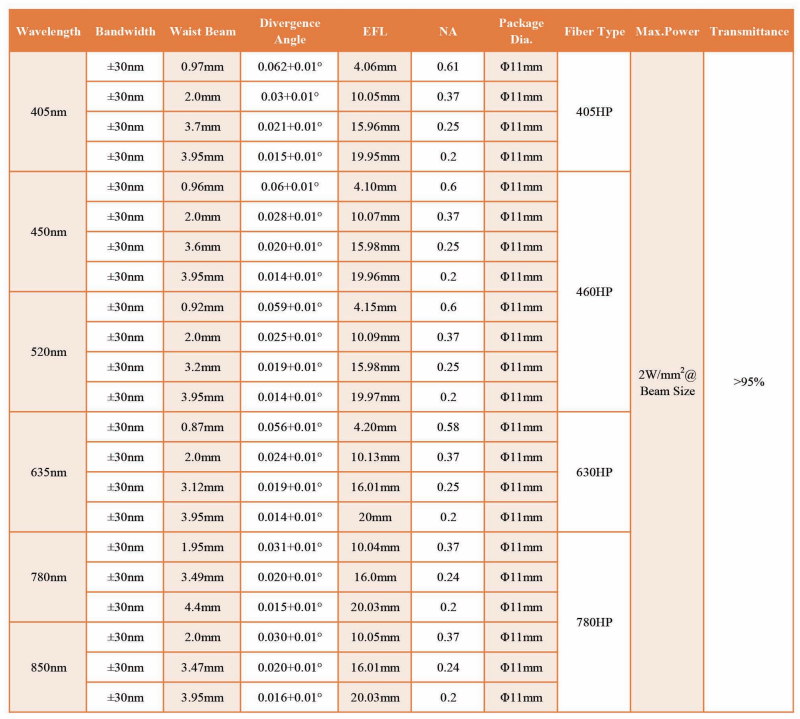

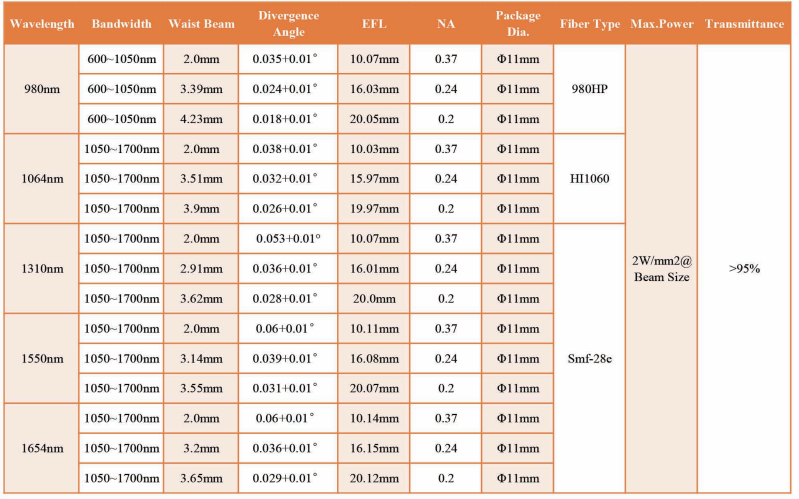

Core performance advantages: Suitable for color-accurate scenarios
Ultraopto's Achromatic Lenses Collimator boasts exceptional color accuracy with minimal chromatic dispersion, ensuring consistent beam quality across the entire visible spectrum. The collimator delivers low insertion loss (≤0.3dB) and high return loss (≥55dB), minimizing signal attenuation in optical systems. It features a wide effective numerical aperture (NA up to 0.316) and diffraction-limited performance, enabling sharp image formation for display applications. The compact, lightweight design supports device miniaturization, while the robust metal housing ensures mechanical stability and resistance to environmental fluctuations (-40℃ to 85℃).All-scenario application coverage:
Empowering color optical devices Our Achromatic Lenses Collimator is widely applied in consumer electronics, industrial and scientific fields. In AR/VR devices and smart glasses, it ensures clear, color-accurate virtual imagery with no chromatic distortion. For mini projectors and portable display systems, it delivers sharp, uniform projection across the entire screen. In precision optical measurement and color sensing equipment, it provides accurate collimation for color analysis and quality control. The collimator also finds use in medical imaging, digital signage and high-end camera modules, delivering reliable performance for diverse color-critical applications.
Customized Services: Meeting Personalized Needs
As a leading manufacturer of precision optical components, Ultraopto offers fully customized Achromatic Lenses Collimator solutions to meet your unique application requirements. Our professional R&D team can tailor key parameters including spectral range (440-1700nm), lens dimensions (down to Φ1mm), focal length (1.2mm-10mm+), fiber connector type (FC/PC, FC/APC, SMA-905) and housing design. We support custom NA optimization and shape customization (circular / square) for specialized integration needs. All custom collimators undergo multi-stage strict quality inspection, including chromatic aberration testing, transmittance measurement and environmental stability assessment, with a detailed quality report provided.
Quality Assurance and Technical Support:
Your Trusted Choice Backed by advanced achromatic optical technology and a complete quality control system, Ultraopto ensures stable batch supply and consistent product quality. Our production processes adhere to international optical component standards, with each collimator subjected to rigorous testing using spectral analyzers and laser interferometers. We provide professional technical consultation on collimator selection, system integration and color performance optimization, helping you achieve optimal results for your color-critical application. Whether you need standard collimators for AR devices or custom solutions for mini projectors, Ultraopto’s Achromatic Lenses Collimator delivers exceptional value and reliability.
For more detailed technical parameters, product quotation information or custom design solutions for our Ultraopto Achromatic Lenses Collimator, please contact our professional sales and technical team through the official website, and we will provide you with efficient, personalized and professional optical solutions.
