Shi Yingchao's stable accent (Square accent)

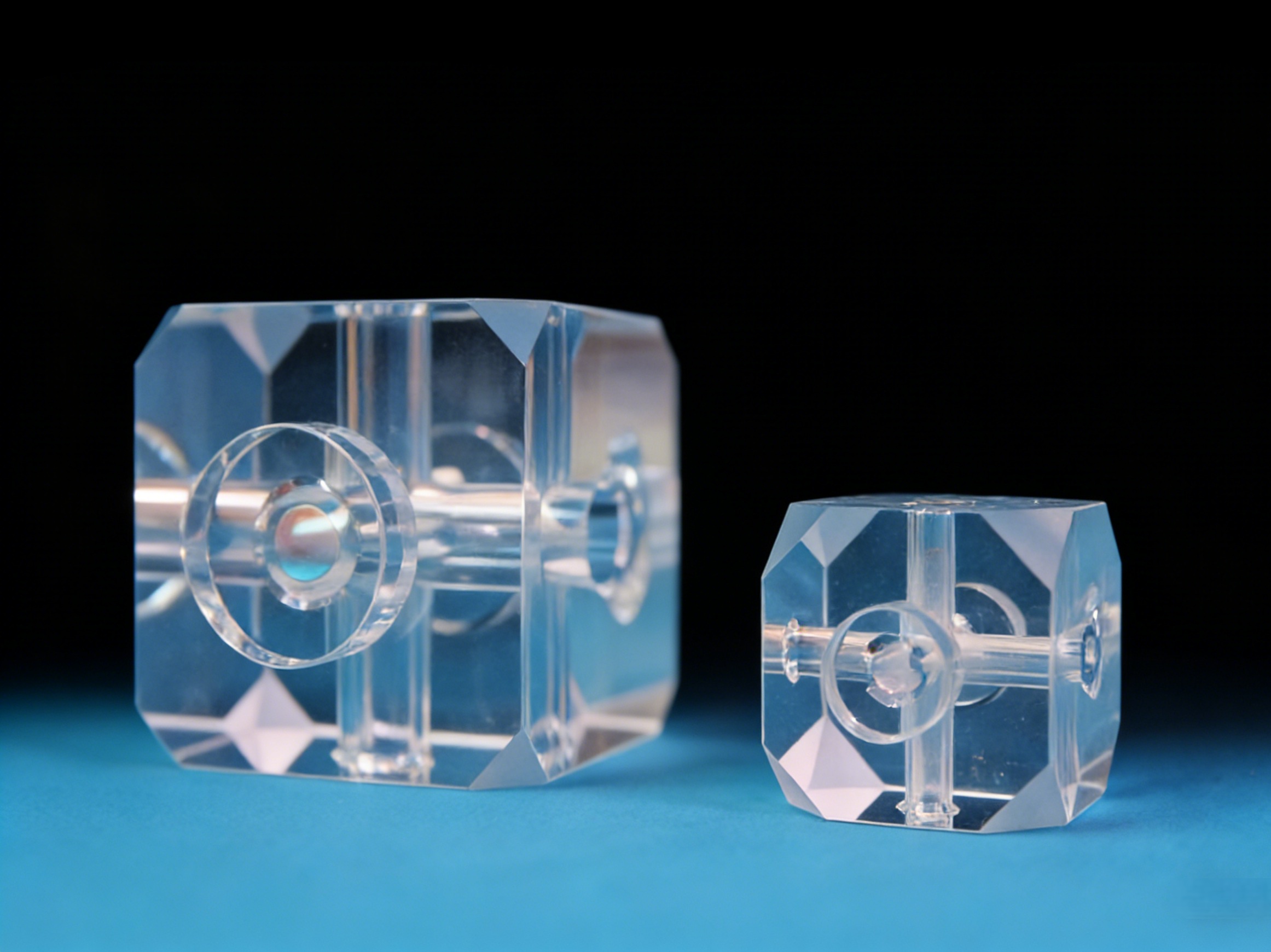

Our Stone Premier Stable cavity (square cavity) is a high-end core component designed for the cutting-edge precision optics field. It uses high-quality fused silica substrate and has excellent optical performance and structural stability, strict control of shape and position accuracy, and industry-leading optical indicators. It can perfectly adapt to the extreme application requirements of high-end scenarios such as ultra-stable lasers, quantum technology, gravitational wave detection, etc. It provides high-precision and high-stability core support for all kinds of cutting-edge optical systems.
Core Product Parameters

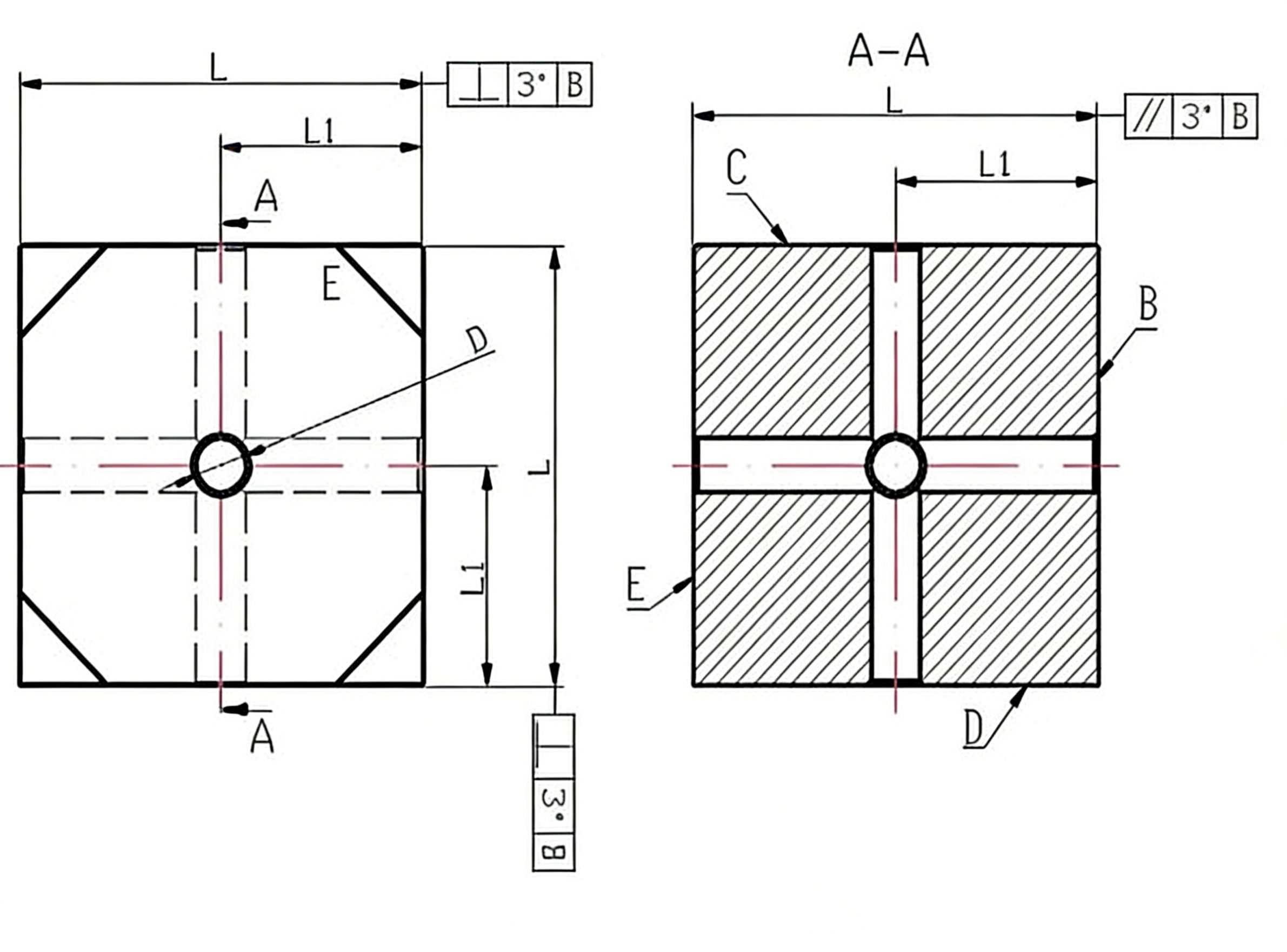

Screening metrics | Specific parameters |
External dimensions | 10×10×10 - 200×200×200mm |
Through-hole diameter and precision | Through hole diameter: φ4-φ12; Perpendicularity of the hole to reference plane: ≤2 '; Hole position: 0.05 |
Parallelism and perpendicularity of the working surface | 3 "or less - 2 ' |
Work area plane shape | Better than λ/[email protected] |
Work area defects and surface roughness | Work area defects: better than 40-20; Surface roughness: 0.5nm |
Substrate material | Fused quartz |
Core Product advantages
Superior base material added: Fused quartz is used as the core base material, which has excellent optical transmittance, low expansion coefficient, high temperature resistance, optical damage resistance, and is suitable for complex and demanding precision optical working environments.
Ultimate form and position accuracy:
through hole perpendicularity ≤2 ', position accuracy 0.05, working surface parallelism and perpendicularity ≤3 "-2 ', precise control of form and position tolerances to ensure the precise assembly and stable operation of the optical system.
High-end optical indicators:
The working area surface shape is better than λ/[email protected], the surface roughness is as low as 0.5nm, the defect grade is better than 40-20, the optical surface quality is excellent, significantly reducing light transmission loss.
Wide specification coverage:
Form dimensions range from 10×10×10 to 200×200×200mm, suitable for assembly requirements of different cutting-edge optical systems, with strong application flexibility and support for customized adjustments.
Multi-scenario high compatibility:
Developed and designed for cutting-edge fields such as ultra-stable lasers, quantum computing, and gravitational wave detection, performance indicators meet industry high-end standards and can be quickly integrated without secondary debugging.
Core application areas
The core is applied in cutting-edge precision optics and quantum technology fields such as ultra-stable lasers, time-frequency transfer, quantum computing, quantum communication, quantum precision measurement, neutral/cold/Rydberg atom research, gravitational wave detection, etc. It is a key core component of all kinds of high-end optical systems.
Ultra-precision Machining Process: Achieving Nanoscale Smoothness
Our Super-smooth Optical Ultra-stable Cavity is manufactured using advanced super-precision processing technologies, including chemical mechanical polishing (CMP) and ion beam figuring (IBF). The cavity’s optical surfaces achieve an ultra-low roughness of <0.1nm RMS, eliminating micro-defects that could affect resonance quality. Surface flatness is controlled within λ/10 @632.8nm, ensuring consistent optical performance across the entire cavity. The cavity length is strictly controlled within ±0.001mm, with parallelism control within <3 arc seconds to optimize resonance efficiency. Edge chamfering (0.3-0.8mm×45°) is applied to prevent chipping and reduce stress concentration during mounting and use.
Core Performance Advantages: Suitable for High-end Precision Scenarios
Ultraopto’s Super-smooth Optical Ultra-stable Cavity boasts exceptional frequency stability with an Allan variance as low as 1×10⁻¹⁵, meeting the stringent requirements of atomic clocks and quantum computing. The cavity exhibits high finesse (up to 15,000) due to ultra-high mirror reflectivity (>99.97%), enabling sharp resonance peaks for precise laser locking via Pound-Drever-Hall (PDH) technology. Its super-smooth surfaces minimize scattering loss and thermal noise, while the advanced coating technology enhances reflection performance and environmental durability. The cavity features low acceleration sensitivity (<5×10⁻¹¹/g), minimizing vibration-induced noise, and supports fundamental mode (TEM₀₀) operation, suppressing higher-order transverse modes for pure frequency reference signals.
Full-scenario Application Coverage: Empowering High-end Optical Equipment
Our Super-smooth Optical Ultra-stable Cavity is widely applied in cutting-edge scientific research and industrial fields. In laser stabilization systems, it serves as a frequency reference to lock narrow-linewidth lasers for gravitational wave detection and optical communication. For atomic clocks (Yb, Sr, Ca-based), it provides the stable frequency reference required for ultra-precise timekeeping. In precision spectroscopy and optical frequency metrology, it enables high-resolution spectral analysis and optical frequency comb locking. The cavity also finds use in quantum computing, laser radar (LIDAR) with long coherence time, and fiber sensing systems, delivering reliable ultra-stable performance for the most demanding applications.
Customization Services: Meeting Personalized Needs
As a leading manufacturer of super-smooth optical components, Ultraopto offers fully customized Super-smooth Optical Ultra-stable Cavity solutions to meet your unique application requirements. Our professional R&D team can tailor key parameters including substrate material (fused silica, ULE glass, single-crystal), cavity dimensions (length 50mm-300mm, diameter 30mm-100mm), surface roughness (down to 0.05nm RMS), finesse (600-15,000) and operating wavelength (UV to NIR). We support custom vacuum flange designs, multi-wavelength mirror coatings and integrated thermal control systems. All custom cavities undergo multi-stage strict quality inspection, including cavity length measurement, frequency stability testing, reflectivity verification and thermal expansion coefficient characterization, with a detailed quality report provided to ensure compliance with your design specifications.
Quality Assurance and Technical Support: A Trustworthy Choice
Backed by advanced super-precision manufacturing technology and a complete quality control system, Ultraopto ensures stable batch supply and consistent product quality. Our production processes adhere to international high-precision optical standards, with each cavity subjected to rigorous testing using laser interferometers, frequency stability analyzers and environmental chambers. We provide professional technical consultation on cavity selection, vacuum integration, thermal management and laser locking implementation, helping you achieve optimal system performance. Whether you need standard cavities for laboratory research or custom solutions for atomic clock manufacturing, Ultraopto’s Super-smooth Optical Ultra-stable Cavity delivers exceptional value and reliability.
For more detailed technical parameters, product quotation information or custom design solutions for our Ultraopto Super-smooth Optical Ultra-stable Cavity, please contact our professional sales and technical team through the official website, and we will provide you with efficient, personalized and professional optical solutions
