Single-sided ultra-smooth spherical mirror substrate
Our single-sided ultra-smooth spherical mirror substrate is a high-precision optical core component, crafted through ultra-precision cutting and polishing techniques, with high dimensional accuracy, excellent optical performance and multi-material compatibility, perfectly meeting the demanding application requirements in high-power lasers, high-precision optical inspection, semiconductor manufacturing and inspection, etc. We provide low-loss, high-precision light control solutions for all kinds of precision optical reflection systems.
Core Product parameters
The product meets the standards of high-end optical components in terms of size specifications, optical indicators, and base material, and the key technical parameters are clearly presented in dimensions:

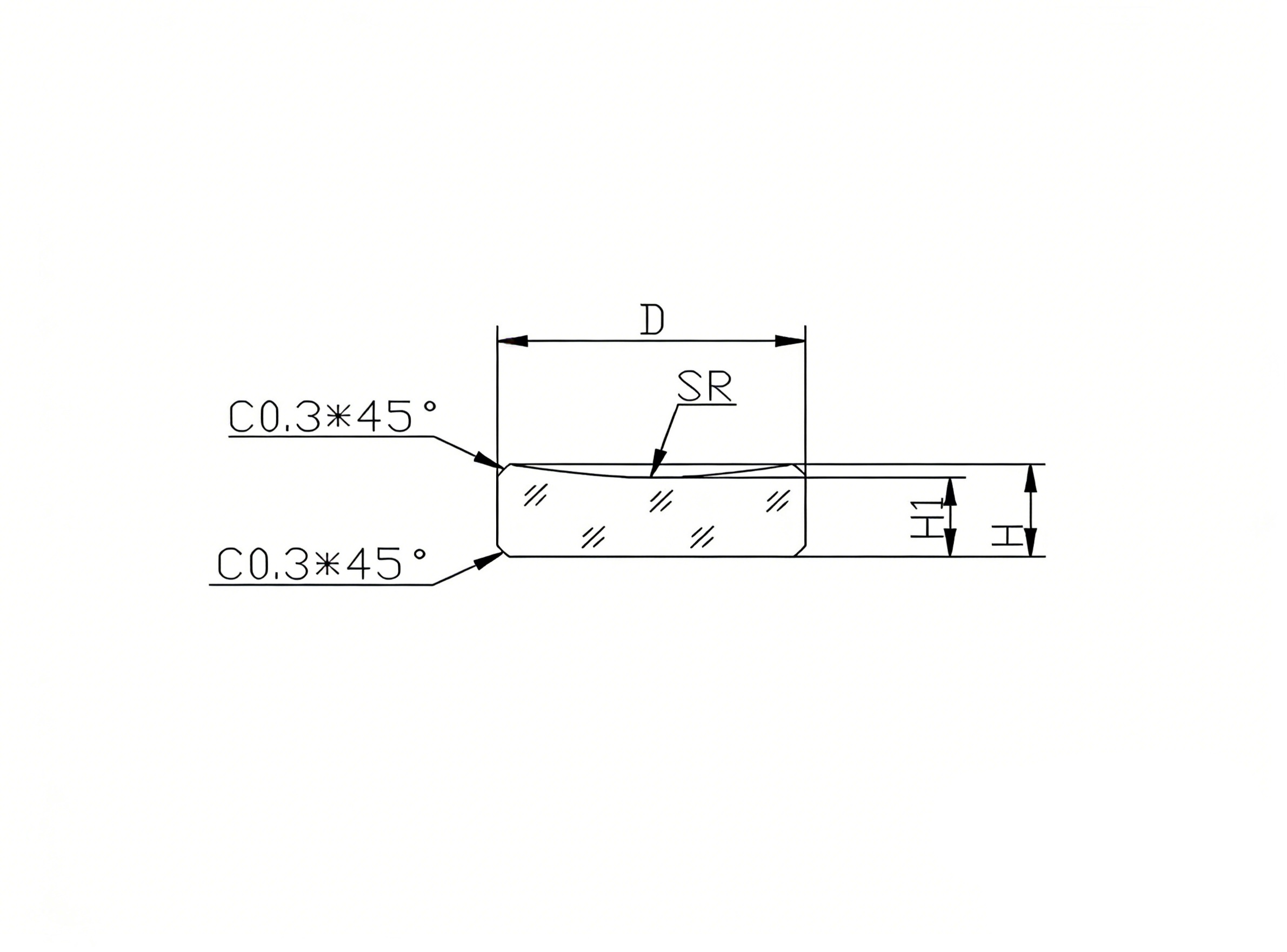

External dimensions parameters
Project | Specific metrics |
Diameter (D) | φ12.7-φ50.8mm (tolerance ±0.1mm); φ50.8-φ200mm (tolerance ±0.1mm) |
Thickness (H) | 4-8mm (tolerance ±0.5mm); ≥D/8 (tolerance ±0.5mm) |
Beveling | 0.2 ~ 0.5 x 45 ° |
Surface shape accuracy and surface defects
Project | Specific metrics |
Surface shape accuracy | λ/2-λ/10 @632.8nm |
Parallax | < 5" |
Roughness (Ra) | Ra0.12nm (Zygo profilometer, 173×173um, 50x lens full frequency measurement) |
Surface defects | 10-5 |
Base material
ULE glass, fused silica, sapphire, microcrystalline glass, monocrystalline silicon
Core product advantages
Ultra-high precision optical performance:
Surface shape accuracy up to λ/2-λ/[email protected], parallelism less than 5 ", single-surface roughness as low as Ra0.12nm significantly reduces light reflection loss, ensuring the accuracy and stability of optical signal transmission.
Wide size coverage:
Diameters cover the entire range from φ12.7 to φ200mm, thicknesses are graded and tolerances are strictly controlled, chamfering is standardized and can directly match the assembly requirements of various optical systems without the need for secondary processing.
Flexible selection of multiple materials:
We offer a variety of high-end base materials such as ULE glass, sapphire, and monocrystalline silicon, which can be customized according to the characteristics of different scenarios such as semiconductor manufacturing and high-power laser applications, with extremely strong adaptability.
High specification surface quality:
Surface defects up to 10-5 industry high standards, no obvious surface defects, effectively avoiding light scattering and reflection deviations, meeting the extreme requirements of high-precision optical inspection fields.
Stable physical properties:
The selected base materials are heat-resistant, laser-resistant and structurally stable, allowing for long-term stable operation in high-power, high-precision working environments and enhancing the overall reliability of the optical system.
Core application areas:
The core applications include high-power lasers, high-precision optical inspection, semiconductor manufacturing, semiconductor inspection and other fields. It is a key basic component in various high-end precision optical reflection systems, providing core optical support for the stable and efficient operation of equipment.
High-quality substrate selection: Laying the foundation for spherical optical performance
Our Single-sided Ultra-smooth Spherical Mirror Substrate is crafted from premium optical materials such as fused silica (JGS1/JGS2) and low-dispersion optical glass (H-K9L), providing outstanding optical homogeneity and mechanical stability. Fused silica variants excel in the UV to NIR spectral range (180nm-2μm) and are resistant to high-power laser damage. making them ideal for laser focusing applications. H-K9L substrates provide cost-effective performance for visible-range systems with good transmittance and low chromatic dispersion. The substrate blank undergoes strict quality control to eliminate bubbles, inclusions and internal stress, ensuring consistent spherical curvature and focusing performance across the entire functional surface.
Super-precision processing technology:
Achieving nanometer-level smoothness and precise curvature
Our single-sided ultra-smooth spherical mirror substrate is manufactured using advanced super-precision processing technologies, including chemical mechanical polishing (CMP) for the spherical surface and precision grinding for the flat back surface. The spherical surface achieves an ultra-low roughness of <0.1nm RMS, minimizing light scattering and ensuring optimal adhesion for subsequent coatings. The curvature radius is controlled within ±0.005mm, and surface accuracy reaches λ/10 @632.8nm, ensuring precise light focusing into a sharp focal point. The flat back surface features a flatness of λ/5 @632.8nm for stable mounting without tilting, while edge chamfering (0.3-0.6mm×45°) prevents chipping during coating and handling.
Core performance advantages:
Suitable for directional optical scenarios Ultraopto’s Single-sided Ultra-smooth Spherical Mirror Substrate boasts exceptional surface quality with a scratch-dig rating of 20/10, ensuring compatibility with high-reflection (HR) and dielectric coatings. The single-sided design optimizes cost-effectiveness for applications requiring only one functional spherical surface, While the substrate's high mechanical rigidity prevents deformation under mounting stress, strict dimensional tolerance control (+0/-0.1mm for diameter, ±0.01mm for thickness) enables seamless integration into standard optical mounts. The ultra-smooth spherical surface minimizes light loss, maximizing focusing efficiency for high-power laser systems and imaging devices. Full-scenario application coverage: Empowering focusing and reflection systems. Our Single-sided Ultra-smooth Spherical Mirror Substrate is widely applied in industrial, scientific and consumer optical fields. In laser systems, it serves as the base for focusing mirrors in material processing, medical lasers and laser communication devices. For imaging equipment such as telescopes and microscopes, it collects and focuses light to enhance resolution and brightness. In optical measurement instruments, it provides precise focusing for dimensional measurement and surface defect detection. The substrate also finds use in aerospace sensors, laboratory optical setups and consumer electronics, delivering reliable focusing performance for diverse optical systems.
Customized services:
Meeting personalized needs As a leading manufacturer of super-smooth optical components, Ultraopto offers fully customized Single-sided Ultra-smooth Spherical Mirror Substrate solutions to meet your unique application requirements. Our professional R&D team can tailor key parameters including substrate material (fused silica, H-K9L), diameter (8mm-200mm+), curvature radius (5mm-500mm+), Surface roughness (down to 0.05nm RMS) and surface accuracy (up to λ/20 @632.8nm). We support custom thickness specifications and edge treatment designs for specific mounting needs. All custom substrates undergo multi-stage strict quality inspection, including surface roughness measurement, curvature verification, flatness testing and dimensional accuracy assessment. with a detailed quality report provided to ensure compliance with your design specifications.
Quality Assurance and Technical Support:
Your Trusted Choice Backed by advanced super-precision manufacturing technology and a complete quality control system, Ultraopto ensures stable batch supply and consistent product quality. Our production processes adhere to international precision optical standards, with each substrate subjected to rigorous testing using atomic force microscopes (AFM) and laser interferometers. We provide professional technical consultation on substrate selection, coating compatibility and focusing distance optimization, helping you achieve optimal performance for your specific application. Whether you need standard substrates for laser systems or custom high-precision bases for imaging devices, Ultraopto’s Single-sided Ultra-smooth Spherical Mirror Substrate delivers exceptional value and reliability.
For more detailed technical parameters, product quotation information or custom design solutions for our Ultraopto Single-sided Ultra-smooth Spherical Mirror Substrate, please contact our professional sales and technical team through the official website, and we will provide you with efficient, personalized and professional optical solutions.
