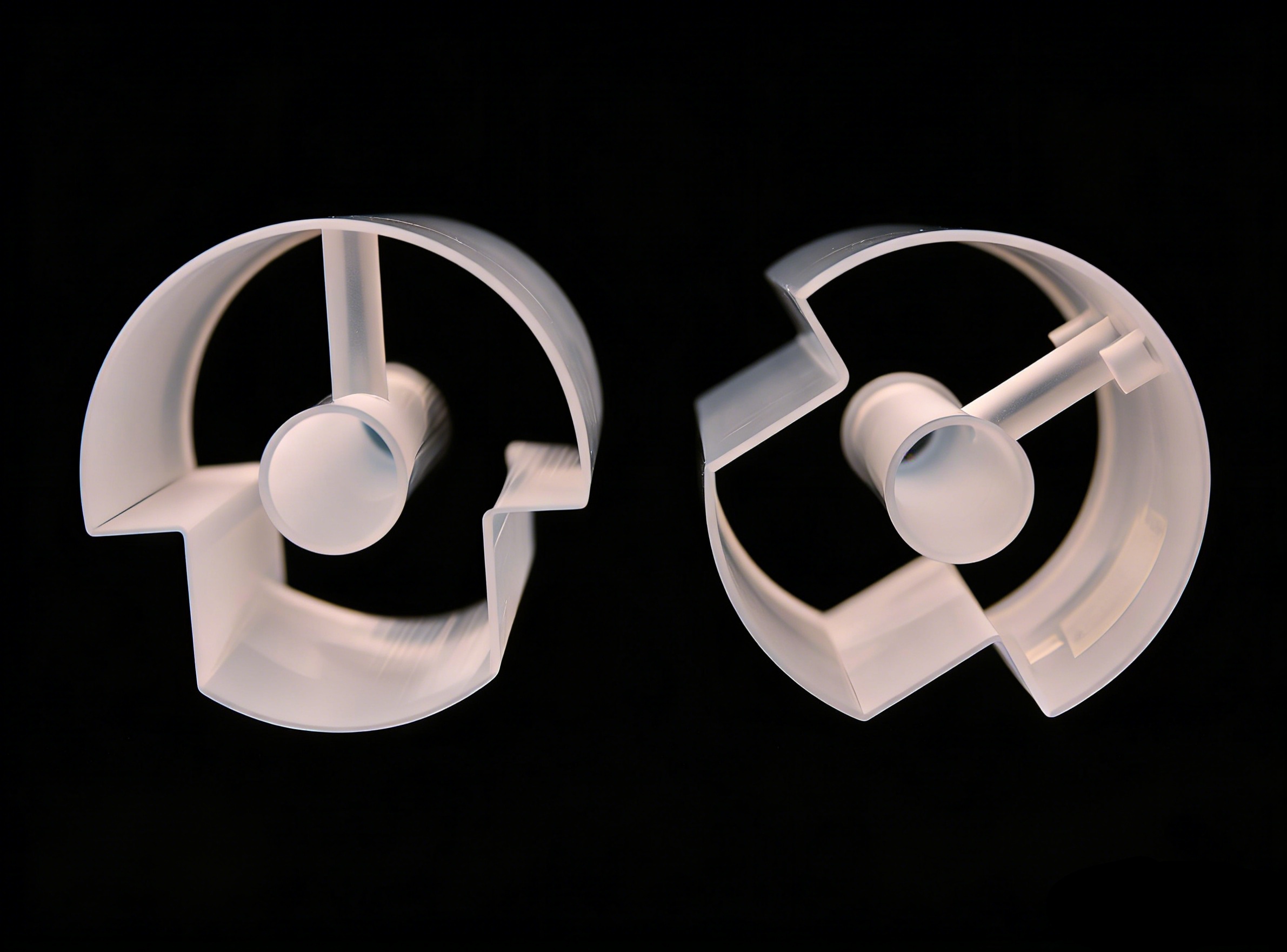

Microcrystalline ultra-stable cavity (round cavity)
The microcrystalline superstable cavity (circular cavity) is a core optical device designed for high-precision optics and quantum fields. It uses high-quality microcrystalline glass as the base material and achieves industry-leading standards in terms of dimensional accuracy, surface shape quality, structural stability, etc. It can fully meet the demanding application requirements in frontier fields such as superstable lasers, quantum technology, gravitational wave detection, etc. It provides reliable optical core support for all kinds of high-precision research and engineering applications.
Core application areas
It is widely applicable to cutting-edge research and technology application scenarios such as ultra-stable lasers, time-frequency transfer, quantum computing, quantum communication, quantum precision measurement, neutral atom research, cold atom research, Rydberg atom research, gravitational wave detection, etc.
Key technical parameters
Indicators | Specific parameters |

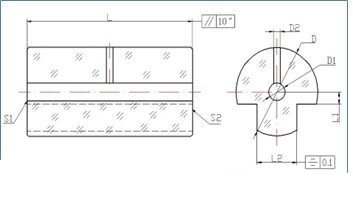

External dimensions range | Diameter D=10-100, length L=5-200 |
Long through hole diameter | From 4 to 12 |
Parallelism of the working surface | 10 or less" |
Work area plane shape | Better than λ/[email protected] |
Work area defects | 40-20 |
Production materials | Microcrystalline glass |
High-quality microcrystalline substrate:
The foundation of a highly stable vacuum core Crafted from high-quality microcrystalline materials via advanced integrated molding and bonding technology, our Microcrystalline Ultra-stable Circular Cavity boasts a unique combination of key properties: ultra-low thermal expansion coefficient, high mechanical strength, minimal dielectric loss and negligible outgassing.
These characteristics enable the cavity to achieve and maintain extreme vacuum levels of 10⁻⁸Pa, critical for cold atom physics research and low-pressure optical experiments. As a non-magnetic material, the cavity eliminates magnetic interference, ensuring no disruption to atomic spin states or magnetic-sensitive measurements. The microcrystalline substrate also offers excellent transparency, allowing visual observation of internal processes while maintaining structural integrity. The cavity’s optical windows feature double-sided anti-reflection coatings with transmittance exceeding 99%, maximizing light utilization and resonance efficiency.
Precision circular structure design:
Optimizing performance and integration Our Microcrystalline Ultra-stable Circular Cavity features a precision-engineered circular design with standard dimensions (diameter 50mm-100mm, length 100mm-300mm), optimized for vacuum sealing and resonance stability. The circular structure ensures uniform stress distribution, minimizing deformation under high vacuum and mounting pressure. The cavity is equipped with customizable interface flanges, available in titanium, 304 stainless steel and 316L stainless steel to match diverse vacuum system configurations. The optical windows are hermetically sealed to the cavity body using high-vacuum-compatible adhesives and mechanical clamping, guaranteeing long-term vacuum integrity. The circular shape also facilitates seamless integration with standard optical mounts and vibration isolation platforms, simplifying system assembly and reducing installation complexity.
Core performance advantages:
Adaptation to demanding application scenarios Ultraopto’s Microcrystalline Ultra-stable Circular Cavity delivers exceptional mechanical rigidity and environmental adaptability, performing reliably even in temperature-fluctuating and vibration-prone environments. The cavity’s microcrystalline construction ensures ultra-low thermal drift, with long-term frequency drift controlled below 5Hz/day. Its non-magnetic property makes it an ideal choice for cold atom MOT systems, magnetic resonance experiments and any application sensitive to magnetic fields. The cavity supports high finesse (up to 8,000) thanks to high-quality mirror coatings, enabling precise laser locking for industrial and scientific applications. Additionally, the cavity exhibits excellent corrosion resistance and mechanical wear resistance, ensuring long service life in both laboratory and industrial settings.
Full-scenario application coverage:
Empowering scientific research and industry Our Microcrystalline Ultra-stable Circular Cavity is widely applied in cutting-edge scientific research, industrial metrology and advanced manufacturing fields. In cold atom physics, it serves as the core component of magnetic optical traps (MOT) for collecting and manipulating atoms, enabling breakthroughs in quantum optics and atomic physics. For precision spectroscopy, it provides stable resonance conditions for high-resolution analysis of chemical compositions and material properties. In industrial metrology instruments, it enables precise measurement of optical frequencies and wavelength standards. The cavity also finds use in aerospace optical sensors, vacuum-based laser systems and magnetic-sensitive experiments, delivering consistent and reliable performance in the most demanding environments.
Customized services:
Meeting personalized needs As a professional manufacturer of ultra-stable optical cavities, Ultraopto offers fully customized Microcrystalline Ultra-stable Circular Cavity solutions to meet your unique application requirements. Our experienced R&D team can tailor key parameters including cavity dimensions (diameter 50mm-200mm, length 100mm-500mm), microcrystalline material specifications, Operating wavelength (visible to NIR), finesse (1,000 - 8,000) and vacuum flange design. We support custom window coatings, interface configurations and integration with vibration isolation systems for high-precision applications. All custom cavities undergo multi-stage strict quality inspection, including vacuum level testing, resonance stability measurement, magnetic property characterization and mechanical rigidity assessment, with a detailed quality report provided to ensure compliance with your design specifications.
Quality Assurance and Technical Support:
Your Trusted Choice Backed by advanced microcrystalline processing technology and a complete quality control system, Ultraopto ensures stable batch supply and consistent product quality. Our production processes adhere to international precision optical and vacuum technology standards, with each cavity subjected to rigorous testing using vacuum gauges, laser interferometers and frequency stability analyzers. We provide professional technical consultation on cavity selection, vacuum system integration, laser locking implementation and magnetic interference mitigation, helping you achieve optimal system performance. Whether you need standard cavities for laboratory research or custom solutions for industrial applications, Ultraopto’s Microcrystalline Ultra-stable Circular Cavity delivers exceptional value and reliability.
For more detailed technical parameters, product quotation information or custom design solutions for our Ultraopto Microcrystalline Ultra-stable Circular Cavity, please contact our professional sales and technical team through the official website, and we will provide you with efficient, personalized and professional optical solutions.
