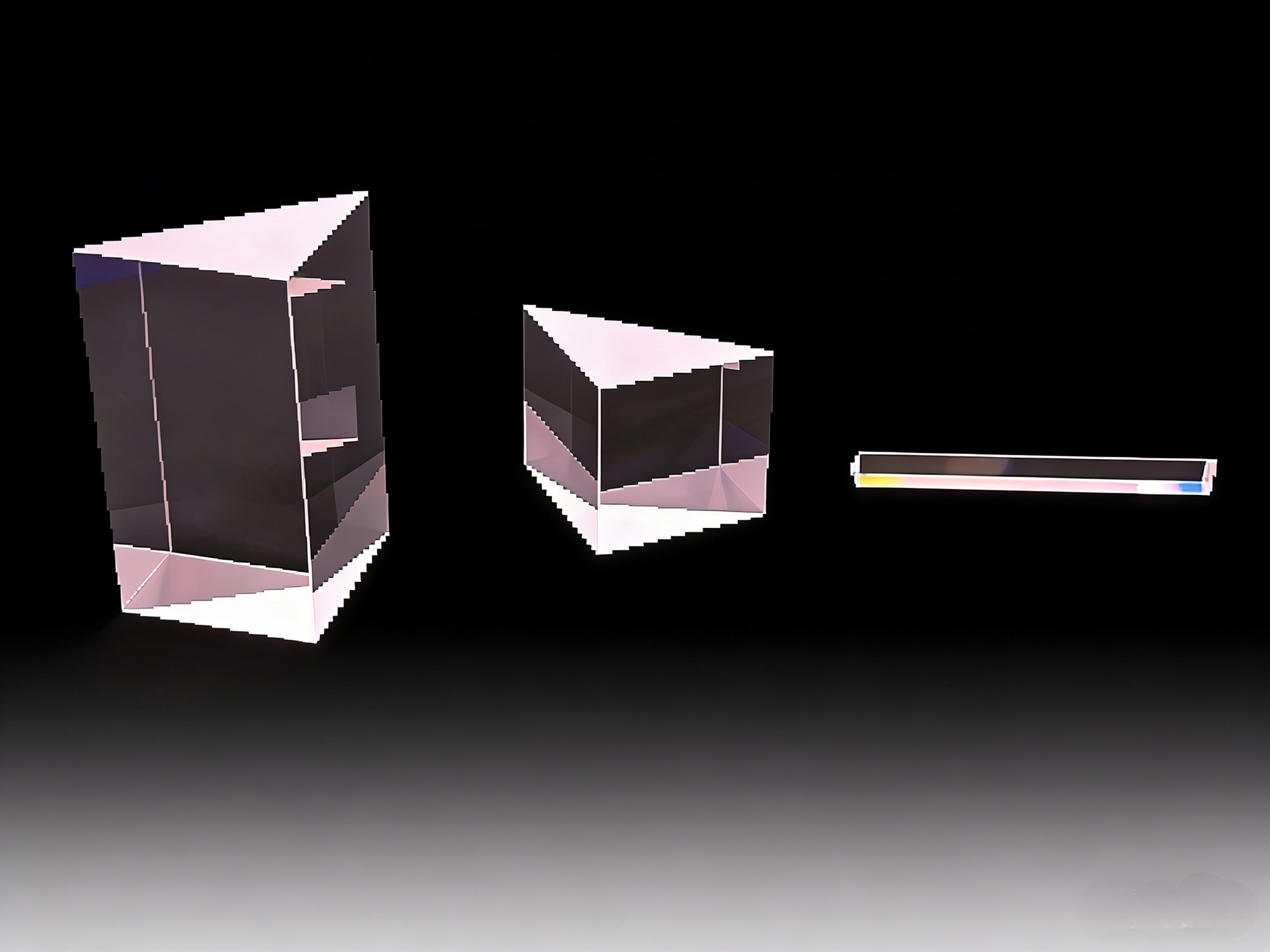

The Right-Angle prism reflects the incident light to the 90° direction or 180° direction. It can undergo anti-reflective (AR) coating processing on the incident surface and the exit surface according to the application requirements. Due to the total reflection that occurs on the reflective surface, a high-precision transmission optical system can be achieved. Through precise control of the polishing and coating processes, the right-angle prisms produced by UItraopto Precision Optics Co. Ltd have excellent straight-angle prisms with high-precision angle errors and excellent transmission and reflection wave surfaces.
The optical path is deflected by 90° or 180°
The angular tolerance reaches sub-second level
Coated with anti-reflection or reflective films

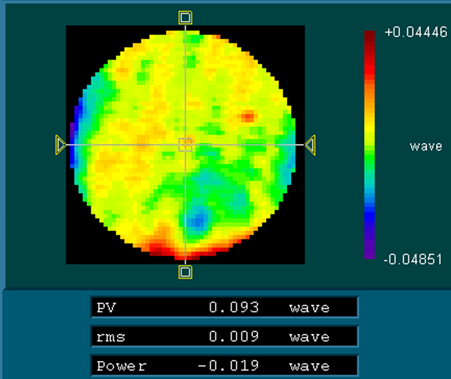

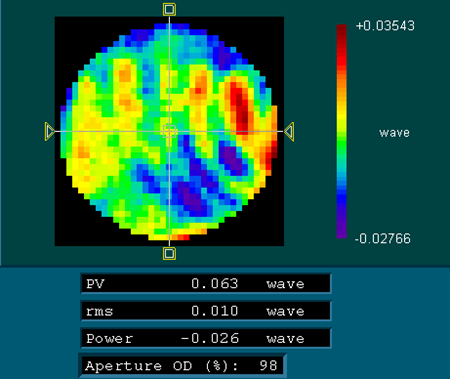

Excellent transmission wavefron
General Specification | |
Angle error: ±10" | Surface quality: 40-20 |
Substrate: H-K9L, H-ZF3, quartz, etc | Chamfering: Chamfering as needed |
Dimensional error: +0.0/-0.1mm | Tower error: < 3 ' |
Coating: Anti-reflective film or AL+MgF2 (protective film) | Surface shape accuracy: 1/10λ |
Size specifications and coating requirements are customized according to demand | |
