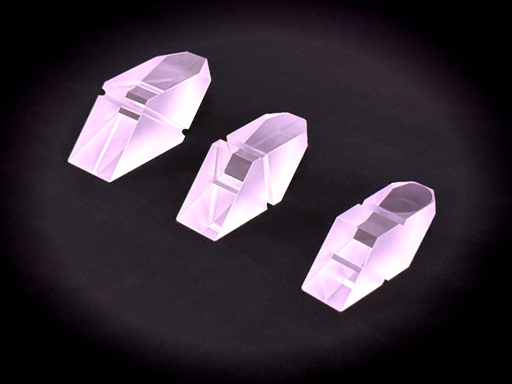

Rhombic Prism

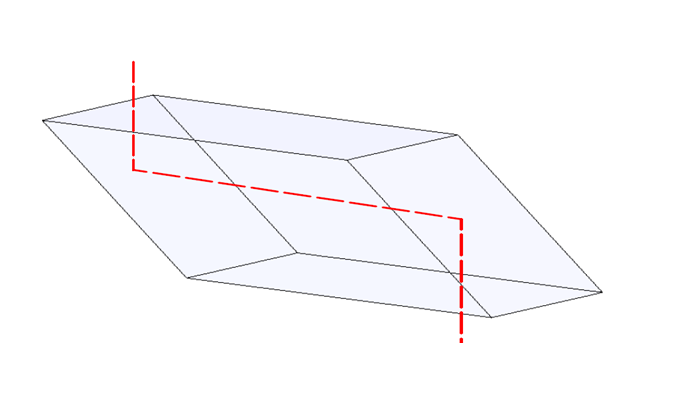

Rhombic Prisms, also known as oblique prisms or Fresnel prisms, are often used in applications where the direction of the laser beam remains unchanged. The rhombic prisms produced by UItraopto Precision Optics Co. Ltd. are frequently employed for beam deflection. In imaging applications, the rhombic prism can shift the optical axis while keeping the image from flipping. The lateral offset is equal to the length of the prism (calibrated by D). UItraopto Optoelectronics can produce rhombic prisms with high precision Angle tolerances, ensuring that the parallelism error between the output beam and the input beam is within 30 UItraopto Precision Optics Co. Ltd. accepts custom rhombic prisms of all specifications.

By precisely controlling the polishing, coating and bonding processes, UItraopto  Optoelectronics can stably provide this type of product and accept custom prisms of various specifications.

Achieve lateral beam offset

Achieve optical axis offset, image not flipped

Input to output beam parallelism up to ±30

Ultraopto’s Rhombic Prism is a high-precision optical component engineered for non-deviating, non-rotating beam displacement, serving as a core part in high-resolution optical imaging systems, laser alignment setups, precision optical instrumentation and professional optical equipment across aerospace, biomedical and industrial fields. Featuring a symmetrical rhombic structural design with four precisely polished optical surfaces, our Rhombic Prisms shift the incident light path parallel to itself without altering the beam’s direction or causing image rotation, which is critical for optical systems where light path adjustment is required without distorting the original optical signal.

We manufacture our Rhombic Prisms with advanced ultra-precise grinding and polishing technologies, implementing strict micron-level tolerance control over all critical optical parameters including side length accuracy, angular parallelism, surface flatness and optical transmittance. Every Rhombic Prism is crafted from premium high-transmittance optical materials including N-BK7, Fused Silica and other high-quality optical substrates, carefully selected for their excellent optical performance in ultraviolet (UV), visible and infrared (IR) spectral ranges, high surface hardness and stable mechanical properties, able to withstand complex industrial working conditions and high-precision scientific research requirements. Our strict multi-stage production quality control system, from raw material screening to finished product performance testing, ensures that each Rhombic Prism meets international high-end optical manufacturing standards, delivering consistent and reliable beam displacement performance with low optical loss in the stringent working environments of optical imaging, laser processing and scientific research laboratories.

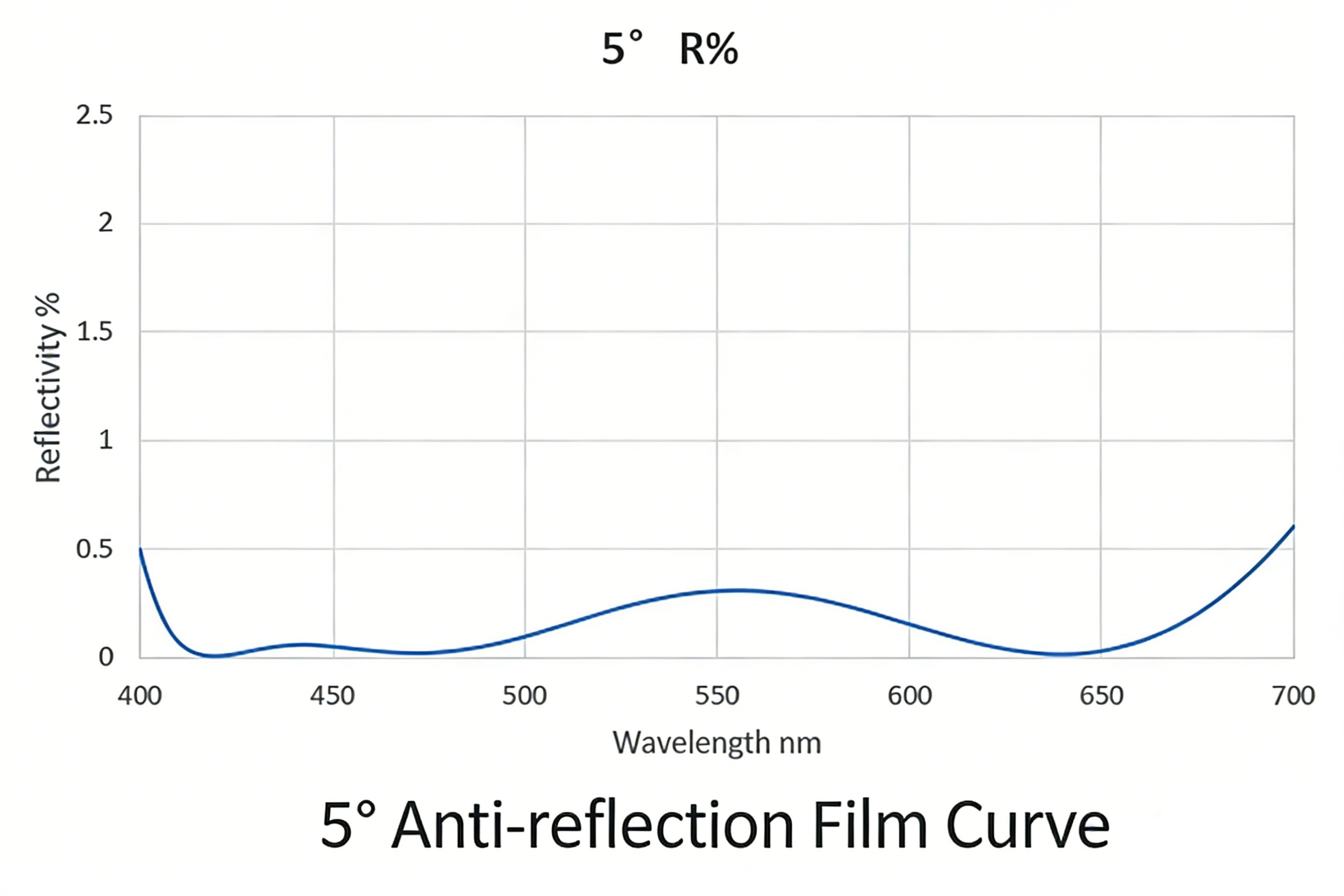

Our Rhombic Prisms boast outstanding core optical advantages, with ultra-precise parallel beam displacement that ensures the incident and emergent light paths are perfectly parallel, eliminating beam deviation and image distortion to maintain high optical signal fidelity, which is essential for high-precision optical imaging and laser alignment applications. The optimized symmetrical structural design and advanced surface processing technology realize high light transmittance and minimal optical loss, minimizing reflection and scattering loss on the prism’s optical surfaces through precision polishing, maximizing the utilization of light energy and reducing signal attenuation in the beam transmission process. The high dimensional precision and flawless surface quality of the prism ensure seamless integration with various optical systems and laser equipment, avoiding optical path offset, coupling errors and signal distortion caused by dimensional deviations or surface defects, and enhancing the stability and reliability of the entire optical setup during long-term operation. We also provide customized wavelength-specific anti-reflection (AR) coating services for Rhombic Prisms, further reducing surface reflection loss and improving optical transmittance for specific spectral ranges, making the product more suitable for the unique wavelength and application scenarios of customers' optical systems. In addition, the prism features a robust and compact structural design, with excellent resistance to temperature changes, mechanical vibration and industrial field wear, ensuring long-term stable and reliable operation in complex industrial working environments, harsh outdoor optical application scenarios and high-precision laboratory conditions.

Ultraopto’s high-precision Rhombic Prisms are widely applied in a full range of professional optical fields that demand precise non-deviating beam displacement, including high-resolution optical imaging systems such as biomedical imaging equipment, industrial machine vision inspection systems and professional optical observation instruments, realizing light path adjustment without distorting imaging signals; laser systems such as laser alignment, laser beam shaping and high-precision laser measurement, providing parallel beam displacement to optimize laser path layout without altering laser direction; precision optical instrumentation such as spectroscopes, interferometers, optical metrology equipment and astronomical optical instruments, meeting the high-precision light path adjustment requirements of scientific research and industrial detection; as well as aerospace optical sensors, micro-optical systems, laboratory optical experiment platforms and industrial non-destructive testing equipment in the scientific research, aerospace and industrial sectors. As a leading manufacturer of precision optical prisms with mature production and R&D capabilities and rich experience in optical component manufacturing, Ultraopto offers fully customized Rhombic Prism solutions to meet the unique optical application requirements of global customers.

Our professional R&D and engineering team can provide personalized customization for all key product parameters, including custom external dimensions and side lengths to match specific optical system layout requirements; customized coating processes for specific wavelengths in UV, visible and IR spectral ranges to optimize optical transmittance and reduce reflection loss; premium optical material selection based on your application’s spectral range, environmental conditions and performance requirements, ensuring optimal optical transmittance and structural stability; and ultra-strict tolerance control for ultra-high precision optical systems to meet the most stringent beam displacement standards in scientific research and aerospace fields. All custom Rhombic Prism orders undergo multi-stage strict optical performance testing and quality inspection, including beam displacement precision detection, optical transmittance measurement, surface quality inspection and light path stability testing, and a detailed quality inspection report is provided to ensure that the final product fully complies with your design specifications and actual optical application requirements.

Backed by advanced optical component production processes, a complete quality control system and a professional technical support team with rich optical application experience, Ultraopto is committed to providing global customers with high-quality, high-precision Rhombic Prism products and one-stop custom optical solutions. We have stable batch supply capacity and perfect after-sales service, and can provide professional technical consultation, optical system matching suggestions and product performance optimization solutions according to your specific application scenarios and optical parameter requirements. For more detailed technical parameters, product quotation information or custom design solutions of our Ultraopto Rhombic Prism, please contact our professional sales and technical team through the official website, and we will provide you with efficient, professional and personalized optical solutions to support the development, optimization and upgrading of your optical systems and precision optical equipment.
