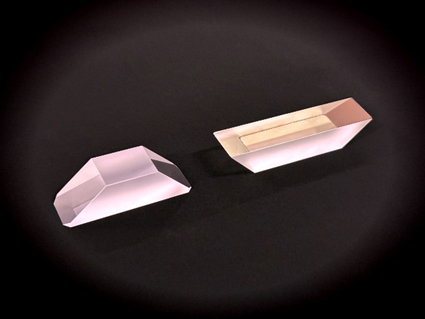

The Dove prisms produced by UItraopto Precision Optics Co. Ltd.. are used for rotating, reversing or retroreflective images, depending on the rotation Angle of the prism and the light entering the surface of the prism. UItraopto Optoelectronics can produce custom Dove prisms of various material, size, Angle accuracy, surface shape accuracy, coating and other specifications according to customer requirements.
Through precise control of polishing, coating and bonding processes,UItraopto Precision can stably provide this type of product and accept custom prisms of various specifications.

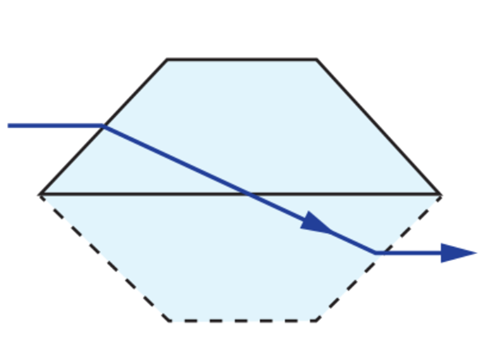

180° image rotation
Rotate and reverse the image or reverse the reflected light
Left-handed coordinate graphics

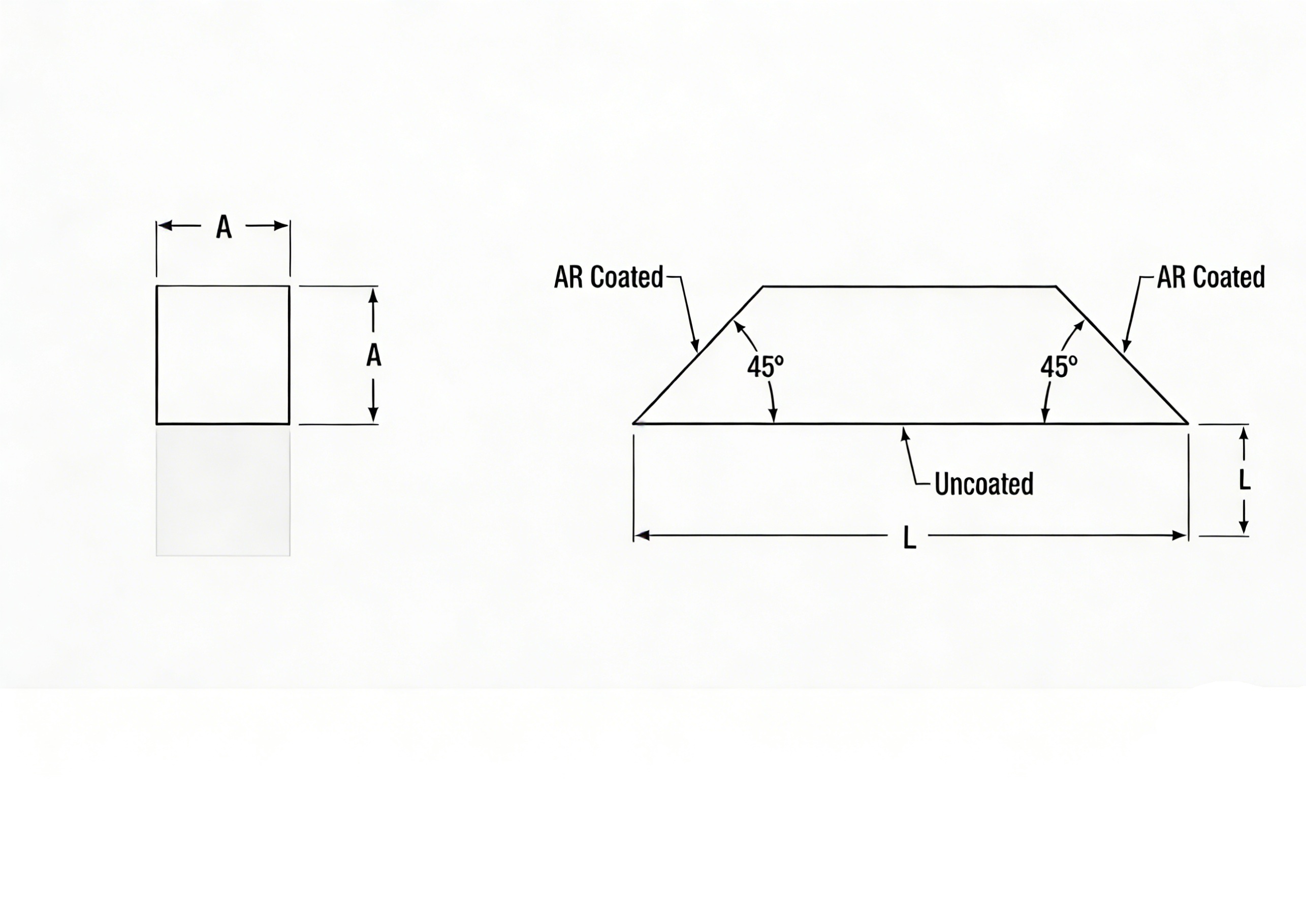

General specification | |
Substrate: H-K9L, quartz, etc | Surface quality: 40/20-60/40 |
Effective caliber: 70% of the maximum length and face width | Bevel: < 0.25mm×45° |
Surface accuracy: 1/4λ | Dimensional error: +0.0/-0.1mm |
Angle error: ±3 ' | Coating: Anti-reflective coating |
Size specifications and coating requirements are customized according to demand | |

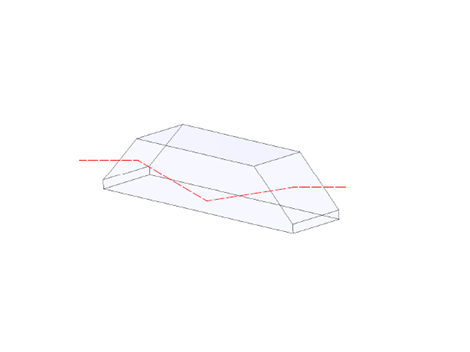

Ultraopto’s Dove Prism is a high-precision optical component specialized in 360° continuous distortion-free image rotation and light path adjustment, serving as a core optical part in high-resolution optical imaging systems, laser alignment setups, precision optical instrumentation and a variety of professional optical equipment across aerospace, biomedical and industrial fields. Characterized by its unique wedge-shaped structural design with a truncated apex, our Dove Prism can realize smooth 360° image rotation by simply rotating the prism itself, without altering the direction of the incident and emergent light paths, which greatly simplifies the structural design of complex optical systems and improves the flexibility and accuracy of optical path and image adjustment for high-precision detection and observation applications.
We manufacture our Dove Prisms with advanced ultra-precise grinding and polishing processes, implementing strict micron and arcsecond-level tolerance control over all critical optical parameters including angular accuracy, surface flatness, parallelism of the incident and emergent surfaces, and image rotation precision. Every Dove Prism is crafted from premium high-transmittance optical materials including N-BK7, Fused Silica and other high-quality optical substrates, carefully selected for their excellent optical transmittance across UV, visible and IR spectral ranges, high surface hardness, stable optical properties and resistance to environmental changes, able to meet the diverse wavelength and performance requirements of professional optical systems, and withstand the stringent working conditions of high-precision scientific research and industrial production.
Our rigorous multi-stage production quality control system, covering raw material selection, rough processing, fine polishing, coating and finished product testing, ensures that each Dove Prism meets international high-end optical manufacturing standards, delivering consistent and reliable image rotation performance and stable low-loss light path transmission in aerospace optical sensors, biomedical imaging equipment, industrial machine vision systems and scientific research laboratories. Our Dove Prisms boast outstanding core optical advantages, with ultra-precise image rotation performance that ensures distortion-free and high-fidelity image rotation at any angle, maintaining clear light signal transmission and image quality, which is a key requirement for high-precision optical imaging, laser alignment and astronomical observation applications.
The optimized optical design and advanced surface processing technology realize high light transmittance and low optical loss, minimizing surface reflection and scattering loss through precision polishing, maximizing the utilization of light energy and reducing signal attenuation in the light path transmission and image rotation process, effectively enhancing the overall performance and detection accuracy of the optical system. The high dimensional precision and flawless surface quality of the prism ensure seamless integration with various optical systems and equipment, avoiding optical path offset, coupling errors and image distortion caused by dimensional deviations or surface defects such as scratches and pits, and improving the stability and reliability of the entire optical setup during long-term operation.
We also provide customized wavelength-specific anti-reflection (AR) and high-reflection (HR) coating services for Dove Prisms, further reducing surface reflection loss and improving optical transmittance for specific spectral ranges, making the product more suitable for the unique wavelength and application scenarios of customers' optical systems. In addition, the prism features a compact and robust structural design, with durable vacuum-plated coatings that provide excellent environmental adaptability, including resistance to temperature changes, mechanical vibration, humidity and industrial field wear, ensuring long-term stable and reliable operation in complex industrial working environments, harsh outdoor optical application scenarios and high-precision laboratory conditions.
Ultraopto’s high-precision Dove Prisms are widely applied in a full range of professional optical fields that demand precise 360° image rotation and flexible light path adjustment, including high-resolution optical imaging systems such as biomedical imaging equipment, industrial machine vision inspection systems and professional optical observation instruments, realizing accurate image rotation and adjustment for clear imaging and precise defect detection; laser systems such as laser alignment, laser beam shaping and high-precision laser measurement, providing flexible light path adjustment without changing the laser transmission direction and ensuring stable laser operation; precision optical instrumentation such as spectroscopes, interferometers, optical metrology equipment and astronomical optical instruments, meeting the high-precision optical adjustment requirements of scientific research and industrial detection; as well as aerospace optical sensors, military optical equipment, micro-optical systems and laboratory optical experiment platforms in the scientific research, aerospace, medical and industrial sectors. As a leading manufacturer of precision optical prisms with mature production and R&D capabilities and decades of experience in optical component manufacturing.
Ultraopto offers fully customized Dove Prism solutions to meet the unique optical application requirements of global customers. Our professional R&D and engineering team can provide personalized customization for all key product parameters, including custom external dimensions, thickness and chamfer design for perfect integration with your optical system and equipment installation requirements; customized coating processes for specific wavelengths in UV, visible and IR spectral ranges to optimize optical transmittance and reduce reflection loss; premium optical material selection based on your application’s spectral range, environmental conditions and performance requirements, ensuring optimal optical transmittance and structural stability; and ultra-strict tolerance control for ultra-high precision optical systems to meet the most stringent image rotation and light path adjustment standards in scientific research and aerospace fields.
All custom Dove Prism orders undergo multi-stage strict optical performance testing and quality inspection, including image rotation precision detection, optical transmittance measurement, surface quality inspection, light path stability testing and environmental adaptability testing, and a detailed quality inspection report is provided to ensure that the final product fully complies with your design specifications and actual optical application requirements. Backed by advanced optical component production processes, a complete quality control system and a professional technical support team with rich optical application experience, Ultraopto is committed to providing global customers with high-quality, high-precision Dove Prism products and one-stop custom optical solutions.
We have stable batch supply capacity and perfect after-sales service, and can provide professional technical consultation, optical system matching suggestions and product performance optimization solutions according to your specific application scenarios and optical parameter requirements. For more detailed technical parameters, product quotation information or custom design solutions of our Ultraopto Dove Prism, please contact our professional sales and technical team through the official website, and we will provide you with efficient, professional and personalized optical solutions to support the development, optimization and upgrading of your optical systems and precision optical equipment.
