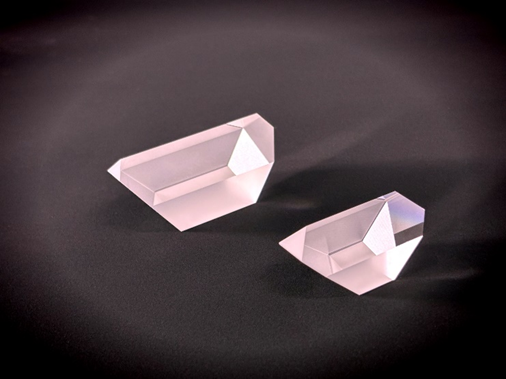

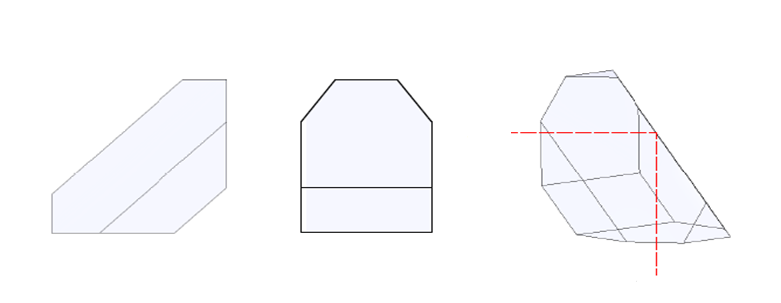

The Amici prism produced by UItraopto Precision Optics Co. Ltd. is also known as "ridge prism" or "right-angle ridge prism". It can rotate and reverse images as well as bend and deflect light at a 90° angle. It is suitable for telescopes and any optical instruments that need to flip images from the objective lens, turn to the right side, or bend at a 90° angle to maintain the correct visual direction. UItraopto Precision Optics Co. Ltd. can stably provide high-precision products of this type through precise control of polishing and coating processes. 90° deviation of the beam or image
6″ resolution
Counter-clockwise rotating image
General Specifications | |
Ridge Angle error: ±3" | Surface quality: 40/20-60/40 |
Substrate: H-K9L, quartz, etc | Beveling: < 0.25mm×45° |
Surface accuracy: 1/10λ | Dimensional error: +0.0/-0.1mm |

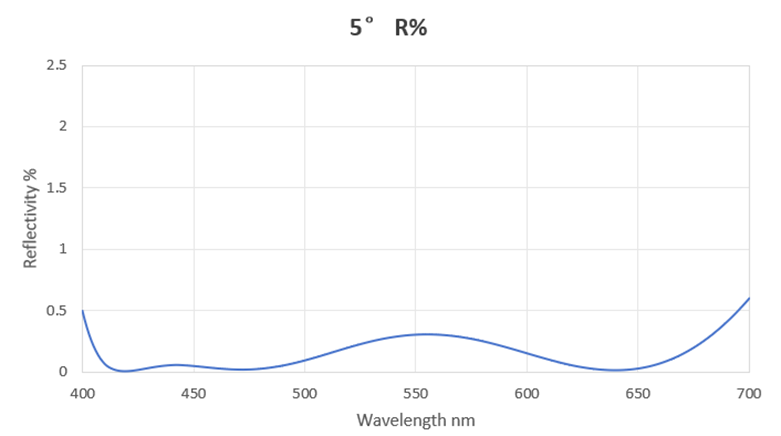

Remaining Angle errors: ±5 ' | Coating: Apply anti-reflective film |
Size specifications and coating requirements are customized according to demand | |
We manufacture our Amici Prisms with advanced ultra-precise grinding and polishing processes, implementing strict tolerance control over all critical optical parameters including angular accuracy, surface flatness, dimensional consistency and dispersion accuracy. Every prism is crafted from premium optical materials including N-BK7, Fused Silica and other high-quality optical substrates, which are carefully selected for their excellent optical transmittance and stable dispersive properties, adaptable to ultraviolet (UV), visible and infrared (IR) spectral ranges to meet the diverse wavelength requirements of different optical applications.
Our strict production quality control system ensures that each Amici Prism meets international high-end optical manufacturing standards, delivering consistent and reliable performance in the stringent working conditions of scientific research, industrial detection, aerospace and biomedical fields.
Our Amici Prisms boast outstanding core optical advantages, with excellent spectral dispersion performance that enables precise separation of different wavelength components of light, providing clear and distinguishable spectral signals for spectroscopy and spectral analysis applications. The optimized structural design ensures undistorted upright image transmission, avoiding image inversion and distortion common in traditional dispersive prisms, and improving the accuracy of optical detection and observation. Through advanced surface processing and optical path optimization, our Amici Prisms achieve low optical loss, maximizing light energy utilization and reducing signal attenuation in spectral transmission and imaging processes, while the high dimensional precision of the prism ensures seamless integration with various optical systems, avoiding optical path offset and coupling errors caused by dimensional deviations and enhancing the overall stability of the optical setup.
We also provide customized wavelength-specific anti-reflection (AR) and high-reflection (HR) coating services for Amici Prisms, further enhancing optical transmittance and dispersion performance, and making the product more suitable for the specific application scenarios of customers' optical systems. In addition, the prism features a robust structural design and durable vacuum-plated coatings, with excellent environmental adaptability, resistance to temperature changes, mechanical vibration and industrial field wear, ensuring long-term stable operation in complex working environments.
Ultraopto’s high-precision Amici Prisms are widely applied in a full range of professional optical fields that demand high spectral dispersion accuracy and stable image transmission performance, including professional spectroscopy and spectral analysis systems such as laboratory spectrometers, industrial spectral detectors and environmental monitoring spectral equipment; high-resolution optical imaging systems such as industrial machine vision, biomedical imaging equipment and professional optical observation instruments; precision optical instrumentation such as interferometers, optical metrology equipment and laser spectral analysis systems for scientific research; as well as aerospace optical sensors, industrial non-destructive testing equipment, and laboratory optical experiment platforms in the scientific research and industrial sectors.
As a leading manufacturer of precision optical prisms with mature production R&D capabilities and rich industry experience, Ultraopto offers fully customized Amici Prism solutions to meet the unique optical application requirements of global customers. Our professional R&D and engineering team can provide personalized customization for all key product parameters, including custom external dimensions, thickness and chamfer design for perfect integration with your optical system; customized coating processes for specific wavelengths in UV, visible and IR spectral ranges to optimize optical performance; premium optical material selection based on your spectral, environmental and performance requirements to ensure optimal dispersive and transmission properties; and ultra-strict tolerance control for ultra-high precision optical systems to meet the most stringent application standards. All custom Amici Prism orders undergo multi-stage strict optical performance testing and quality inspection, including dispersion accuracy detection, surface quality inspection and optical transmittance testing, and a detailed quality inspection report is provided to ensure that the final product fully complies with your design specifications and actual application requirements.
