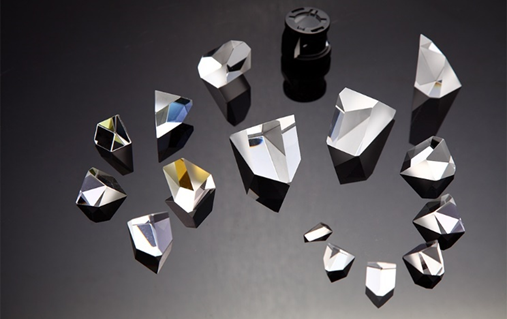

The Schmitt ridge prism produced by UItraopto Precision Optics Co. Ltd. is suitable for creating right-handed images with a 45° light deviation. The 45° light deviation of the Schmitt prism makes it have important applications in eyepiece assembly and imaging systems that require path bending. The ridge surface with phase or aluminum coating can enhance the overall effect, and the 3″ ridge angle tolerance can improve the resolution of the prism. UItraopto Precision Optics Co. Ltd has many years of production and processing experience in Schmitt ridge prisms and has accumulated rich experience. Through continuous improvement and innovative processing techniques, it ensures the surface shape accuracy and angle accuracy of the product during polishing. The excellent coating process and strict quality control management provide high-quality products of this type to domestic and foreign customers on a long-term and stable basis. It accepts various requirements and specifications of customers for customization.

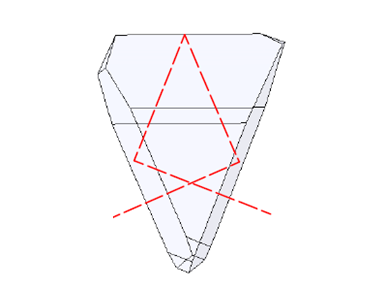

The light is deflected by 45° or 48°, etc
The ridge angle error is within 3 inches.
High resolution
General Specifications | |
Ridge Angle error: ±3" | Surface quality: 40-20 |
Substrate: H-K9L, H-BaK7, etc | Chamfering: Chamfering as needed |
Dimensional error: +0.0/-0.1mm | Tower error: < 5 ' |

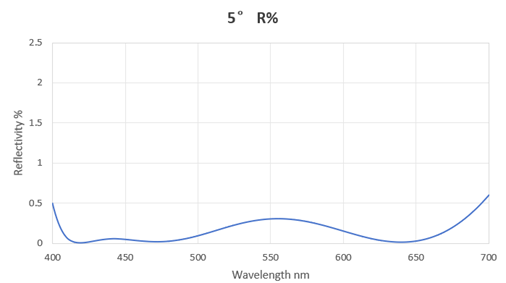

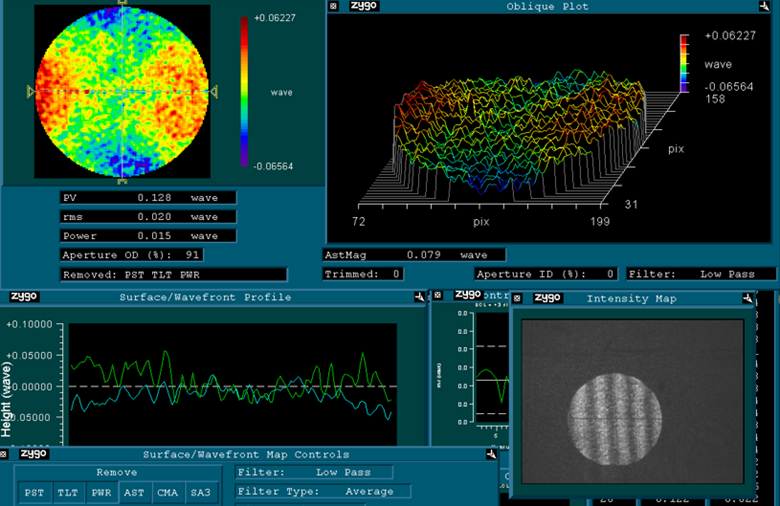

Coating: AR film +PH film or AR film +AL+ protective film | Surface shape accuracy: 1/4λ |
The size specifications and coating requirements, etc. are customized according to the needs | |
