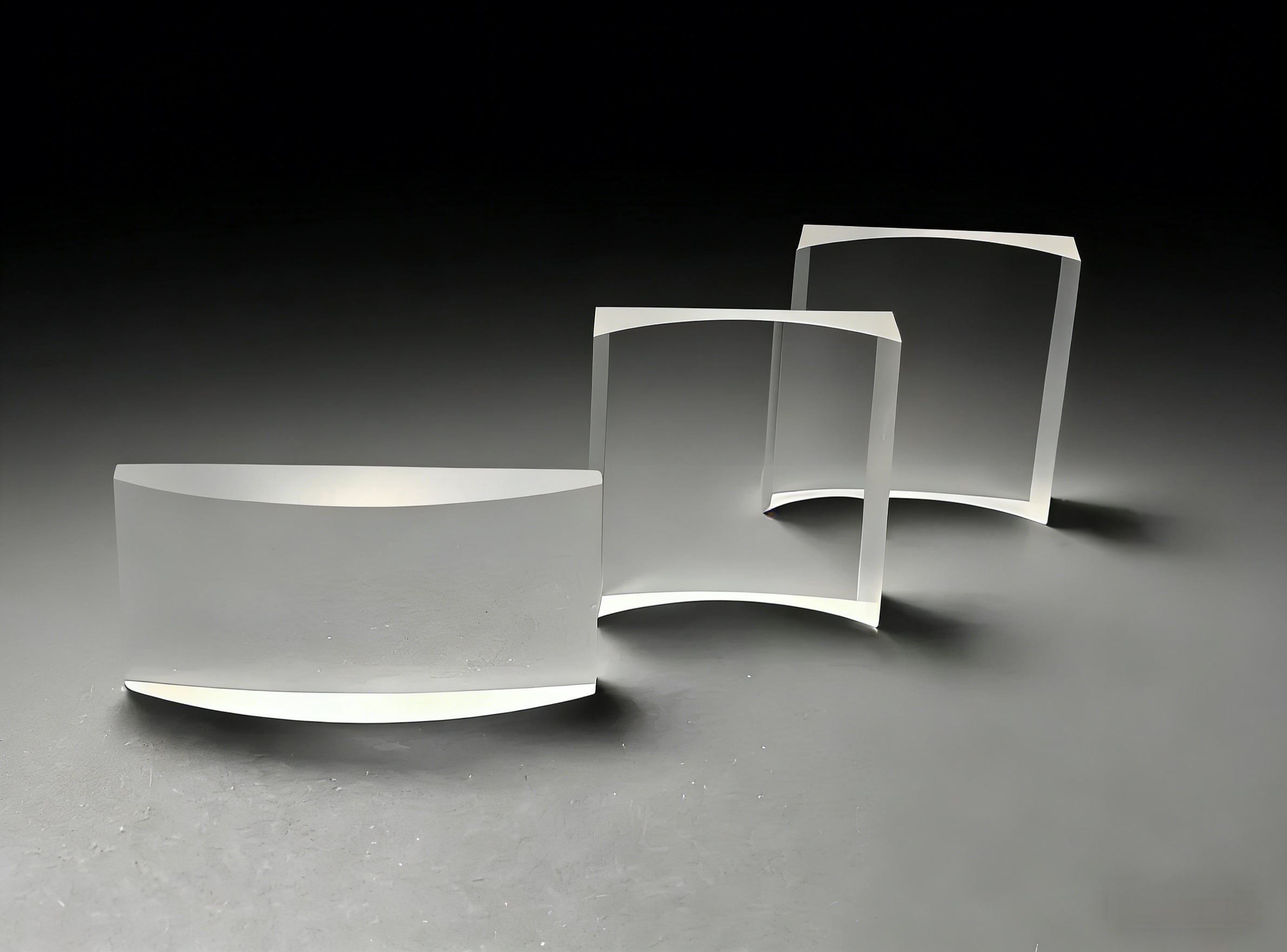

Ultra-Flat Concave Cylindrical Mirror: Precision Craftsmanship for Diverse Optical Systems

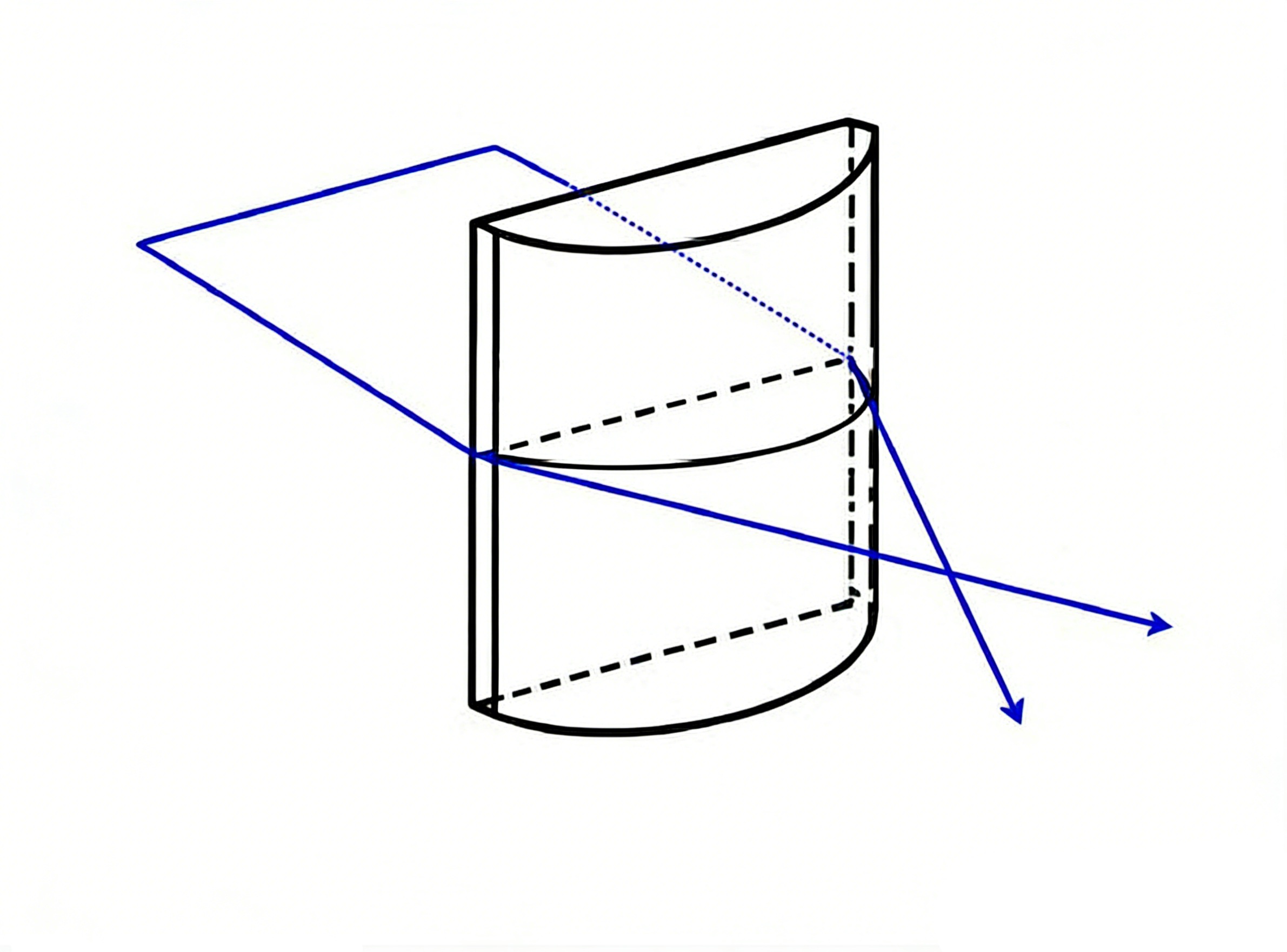

As one of the core planar optical components, the ultra-flat concave cylindrical mirror, with its unique cylindrical optical structure, has curvature only in one direction, enabling beam divergence, focusing, and shaping. It is widely used in high-end fields such as laser processing, optical instruments, semiconductor inspection, photography and videography, and scientific research experiments. It is a key component for beam control and image quality optimization in optical systems. Relying on UltraOpto's mature planar optical processing technology system, our ultra-flat concave cylindrical mirrors feature ultra-high precision, high stability, and low loss, precisely meeting the strict optical application requirements of various industries.
UltraOpto's ultra-flat concave cylindrical mirrors are based on high-quality optical substrates and integrate a complete set of precision planar optical processing techniques. From substrate selection to final product delivery, the entire process is finely controlled, maintaining the company's technical advantages in planar optical processing while optimizing process details for the structural characteristics of the ultra-flat concave cylindrical mirror to ensure product performance and compatibility, providing reliable beam control solutions for various optical systems.
Product Features: Precision Craftsmanship for Superior Performance
With the company's mature planar optical processing technology, the ultra-flat concave cylindrical mirror excels in precision, stability, and compatibility, meeting the personalized application needs of different scenarios. The core features are as follows:
Ultra-high Precision Control:
Utilizing the company's core precision grinding and ultra-precision polishing techniques, the cylindrical curvature, surface shape, and surface finish are strictly controlled. The surface shape accuracy can reach λ/50 PV, and the surface roughness is ≤0.1nm RMS, ensuring precise beam control without significant distortion or stray light interference.
High-quality Substrate Compatibility:
High-purity fused silica, optical glass, sapphire, and other high-quality substrates are selected and rigorously screened to remove impurities and defects, ensuring substrate uniformity and stability, suitable for optical applications in different wavelength bands, and balancing light transmission and mechanical strength.
Customized Coating Enhancement:
With professional vacuum coating technology, various coatings such as anti-reflection and reflective coatings can be customized according to application scenarios, achieving high transmission (up to 99.8%) or high reflection in specific wavelength bands, reducing light signal loss and enhancing the overall performance of the optical system.
High Stability and Durability:
After strict cleaning and quality control processes, the component surface is free of residues and scratches, with excellent thermal stability, mechanical stability, and resistance to wear and corrosion, ensuring long-term stable operation in high and low temperature and complex environments.
Customizable Specifications:
Different sizes, curvature radii, substrates, and coatings can be customized according to customer needs, meeting the personalized requirements of various scenarios such as laser equipment, optical instruments, and semiconductor inspection.
Core Application Scenarios:
Empowering Optical System Upgrades in Multiple Fields. With its unique beam control capabilities, the ultra-flat concave cylindrical mirror is widely used in various high-end optical systems. Relying on its high precision and stability, it has become a core optical component in multiple fields.
Specific application scenarios include:
Laser Processing: Used for laser beam divergence and shaping, suitable for laser cutting, laser engraving, laser welding, and other equipment, ensuring uniform laser beams and improving processing accuracy and efficiency.
Optical Instruments:
Compatible with microscopes, spectrometers, telescopes, and other equipment, achieving beam guidance and shaping, optimizing imaging quality, and enhancing instrument observation accuracy.
Semiconductor:
Used in semiconductor inspection equipment, achieving beam focusing and divergence, assisting in chip defect detection and size measurement, ensuring semiconductor process accuracy.
Photography and Videography:
Compatible with professional cameras and lens modules, optimizing light transmission, reducing distortion, and enhancing image clarity and color reproduction.
Research and experimental field:
It is used in physical, optical, biological and other research experiments to achieve precise control of light beams, assisting researchers in conducting various experimental studies.
Other fields:
It can also be applied in infrared imaging, security monitoring, medical optical equipment, etc., providing reliable beam control support for various optical systems.
Process guarantee: With the strength of planar optics, we create high-quality products
The outstanding performance of UltraOpto's plano-concave cylindrical mirrors is attributed to the company's mature and comprehensive planar optical processing technology system. From raw material selection to final product delivery, every step adheres to strict precision standards:
1.Raw material selection and pre-treatment:
High-purity raw materials are strictly selected, and defects such as impurities and bubbles are removed. Through precise cutting and edge grinding, the size and edge flatness are precisely controlled, laying a solid foundation for subsequent processes.
2. Precision grinding and polishing:
High-precision grinding equipment and ultra-precision polishing processes are used to precisely grind the cylindrical structure, ensuring uniform curvature and smooth surface, achieving mirror-level quality.
3. Customized coating:
According to application requirements, vacuum coating technology is used to apply customized coating systems to enhance light transmission or reflection rates and improve product performance.
4. Stringent quality control and cleaning:
Surface residues are removed through ultrasonic cleaning, and high-end detection equipment such as Zygo interferometers are used for all-round inspection to ensure that each product meets industry high standards.
Quality commitment: Professional empowerment, win-win future
UltraOpto always takes precision technology as the core, delves deeply into the field of planar optical components, and with years of technological accumulation and strict quality control systems, creates high-quality plano-concave cylindrical mirrors, providing reliable support for the upgrade of optical systems in various industries. We can provide customized solutions based on customers' specific application scenarios, from product design, process optimization to final product delivery, offering professional services throughout the process, helping customers achieve breakthroughs in optical system performance, and working hand in hand with industry partners to build a new future for the optical industry.
