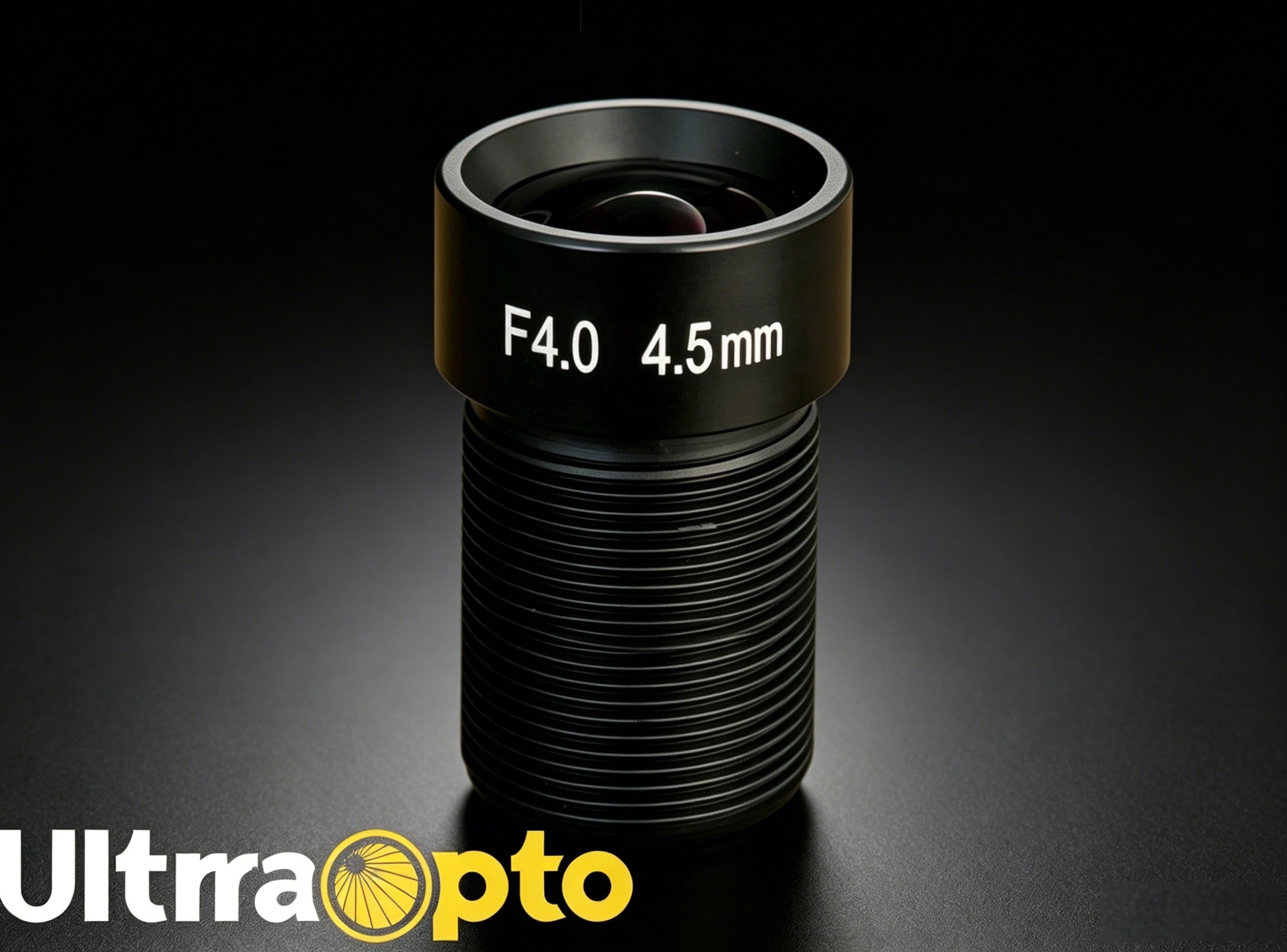

UltraOpto M12-4.5F Series Industrial Lens
UltraOpto’s M12-4.5F Series is a versatile 4.5mm fixed focal length industrial lens designed for 1/3” sensors, ideal for machine vision, industrial inspection, and automation imaging applications. Available in multiple aperture versions (F4.0 / F5.6 / F7.0 / F8.0 / F11), this lens balances compact design, reliable performance, and flexible configuration to meet diverse industrial imaging needs.
Core Optical Performance

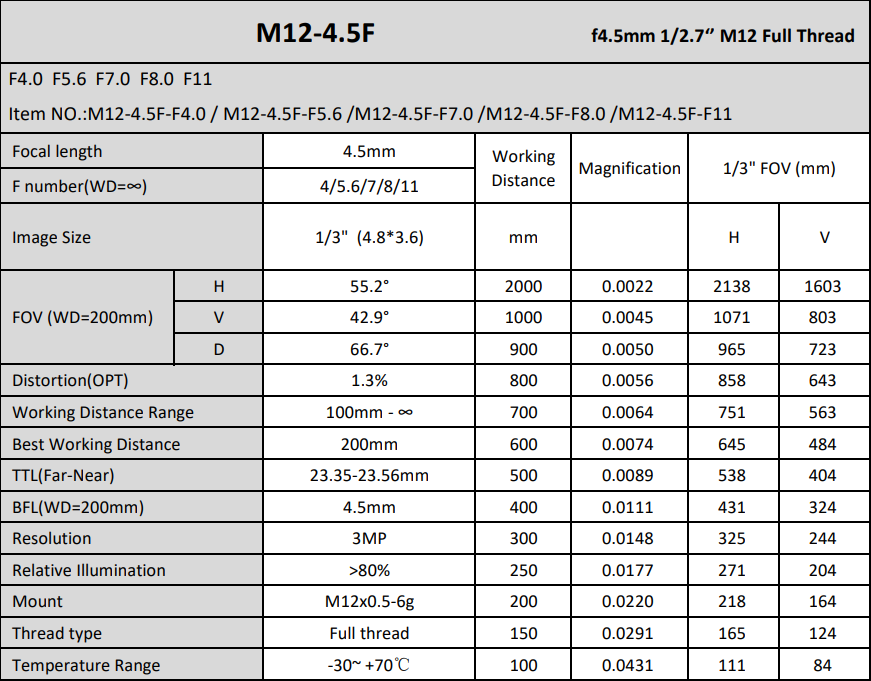

The M12-4.5F series features a 4.5mm fixed focal length with interchangeable aperture options (F4.0 to F11), offering precise control over depth of field and light intake for varying industrial environments. At a working distance of 200mm, it delivers a horizontal field of view (FOV) of 55.2° and vertical FOV of 42.9°, with a low distortion of just 1.3% for accurate detail capture in inspection and measurement tasks.
3MP high resolution:
Delivers sharp, crisp imagery for quality control, barcode scanning, and robotics guidance.
Wide working distance range: Supports focus from 100mm to infinity, suitable for both close-up inspection and long-range imaging.
>80% relative illumination:
Minimizes vignetting across the entire image frame, ensuring uniform brightness from center to edge.
Compact, Industrial-Grade Design

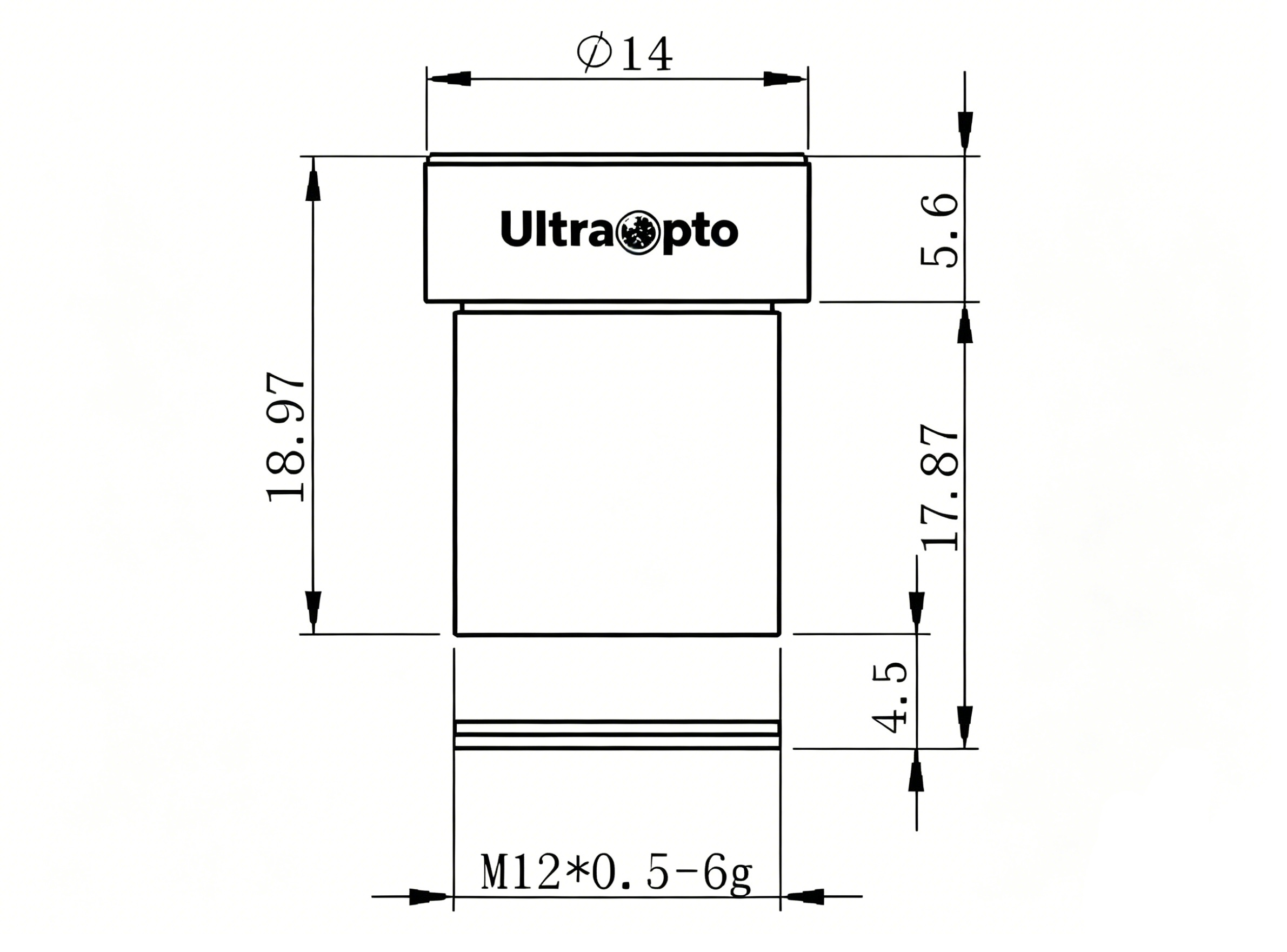

Built with a total track length (TTL) of 23.35–23.56mm and a standard M12×0.5 full-thread mount, this lens integrates seamlessly into compact vision systems, embedded devices, and portable imaging setups.
4.5mm back focal length (BFL): Optimized for easy integration with 1/3” sensors, simplifying system design and calibration.
Durable construction: Full-thread design ensures secure mounting and compatibility with standard industrial camera modules.
Wide temperature resilience: Operates reliably from -30°C to +70°C, suitable for harsh industrial environments.
Versatile Aperture Options for Every Application
The series offers five aperture variants to match specific imaging requirements:
F4.0: Maximum light intake for low-light environments and fast shutter speeds.
F5.6 / F7.0: Balanced performance for general-purpose inspection and automation.
F8.0 / F11: Extended depth of field for high-precision measurement and detailed imaging.
This flexibility makes the M12-4.5F series ideal for applications including logistics scanning, factory automation, robotics vision, and scientific imaging workflows.
Key Product Highlights
4.5mm fixed focal length with 5 aperture options (F4.0–F11) for versatile use cases
1/3” sensor compatible, 3MP resolution, and 1.3% max distortion for accurate imaging
Wide working distance range (100mm–∞) for close-up and long-range applications
Compact M12 full-thread mount, optimized for industrial camera integration
Wide temperature range (-30°C~+70°C) for reliable performance in harsh environments
Application Scenarios
Automated quality control and defect detection
Logistics barcode scanning and sorting systems
Robotics vision guidance and object recognition
Industrial automation and assembly line inspection
