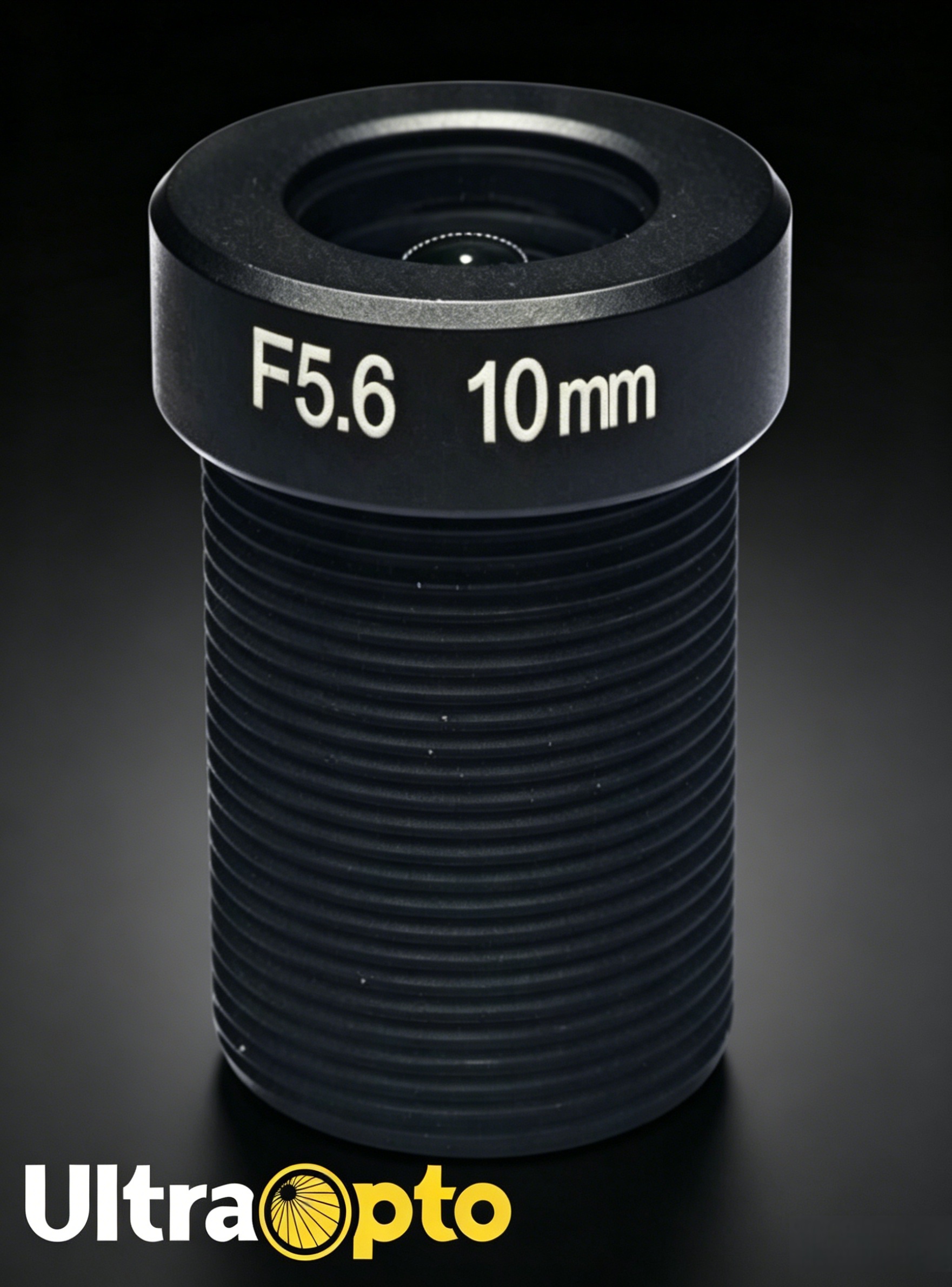

UltraOpto M12-10F Series Industrial Lens

UltraOpto’s M12-10F Series is a precision-engineered 10mm fixed focal length industrial lens designed for 1/1.8" and 1/3" sensors, delivering 6MP resolution with flexible aperture options (F5.6 / F7.0 / F8.0 / F11). Built for high-precision machine vision, metrology, and automation applications, this full-thread lens combines ultra-low distortion, consistent illumination, and rugged durability to meet the strictest industrial imaging requirements.

Core Optical Performance

•


• 6MP High Resolution:

• Delivers sharp, crisp imagery ideal for barcode scanning, robotic guidance, and critical quality control applications.

• Dual Sensor Compatibility:

• Seamlessly works with 1/1.8" (7.2×5.4mm) and 1/3" (4.8×3.6mm) sensors, offering flexibility for different camera system designs.

• Broad Working Distance Range:

• Supports focus from 100mm to infinity, covering close-up inspection and long-range monitoring scenarios.

• 72% Relative Illumination:

• Minimizes vignetting across the entire image frame, ensuring consistent brightness from center to edge for reliable analysis.

Compact, Industrial-Grade Design

•


• 5.02mm Back Focal Length (BFL):

• Optimized for easy integration with 1/1.8" and 1/3" sensors, simplifying system calibration and design.

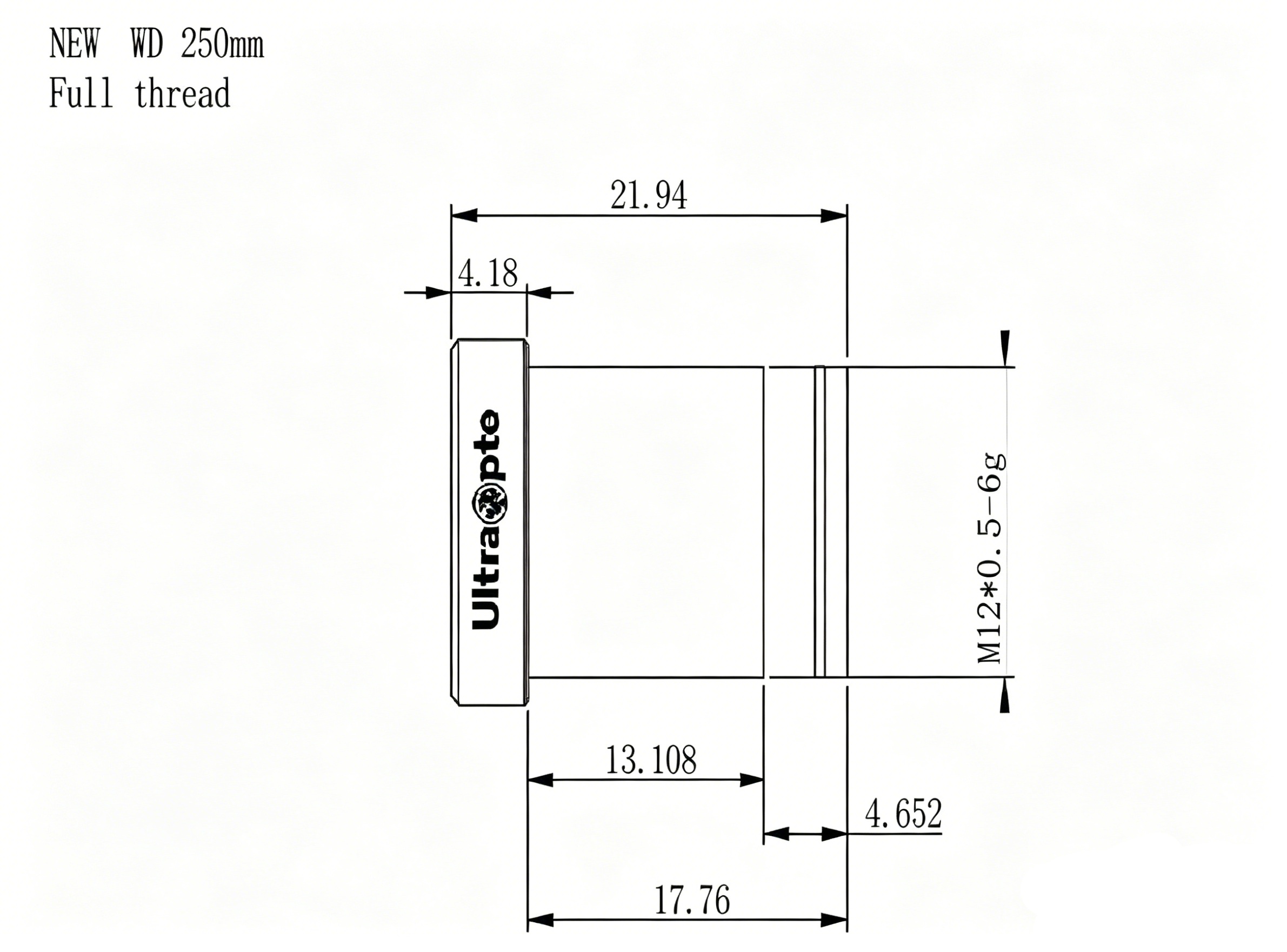

• Durable Full-Thread Construction:

• Provides a secure, stable mount compatible with standard industrial camera modules, ideal for high-vibration industrial environments.

• Wide Temperature Resilience:

• Operates reliably from -30°C to +70°C, ensuring continuous 24/7 performance in harsh industrial settings.

Flexible Aperture Options for Targeted Applications

• F5.6:

• Balanced light intake for general automation and inspection tasks.

• F7.0:

• Versatile performance for mid-range imaging and standard detection workflows.

• F8.0 / F11:

• Enhanced depth of field for precise dimensional measurement and detail-oriented inspection.

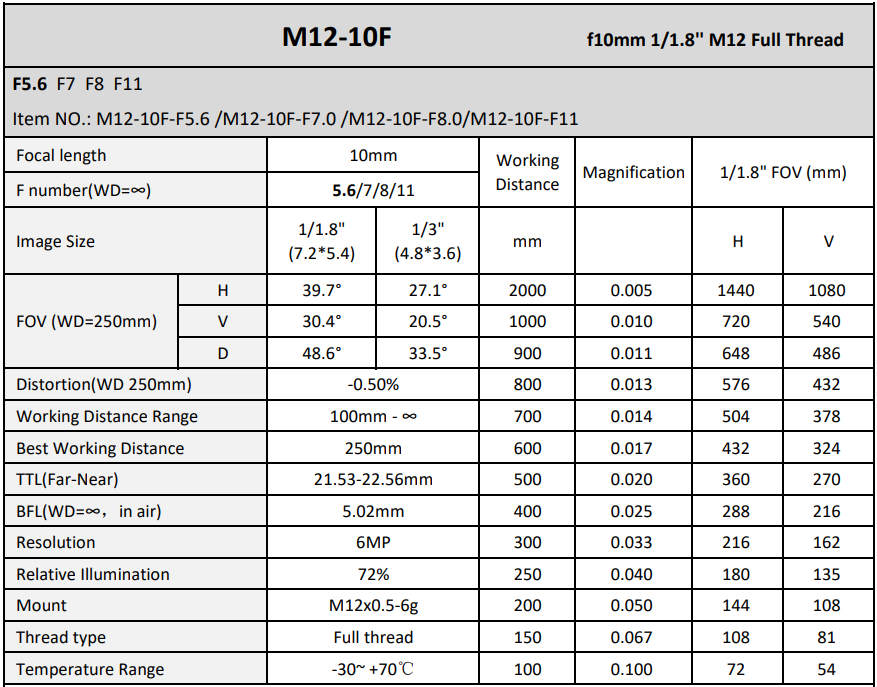

Key Product Highlights

10mm fixed focal length with 4 aperture options (F5.6–F11) for versatile scene adaptation.

6MP high-resolution imaging with ultra-low -0.50% distortion for precise industrial measurement.

Dual compatibility with 1/1.8" and 1/3" sensors, supporting flexible system design.

100mm–∞ wide working distance range, covering near and far imaging scenarios.

Compact M12 full-thread mount, 72% relative illumination, and -30°C~+70°C wide temperature range for reliable industrial operation.

Key Application Scenarios

• Precision dimensional measurement and metrology

• Logistics barcode scanning and automated sorting

• Robotic vision guidance and object recognition

• Industrial assembly line inspection and monitoring

• Embedded vision systems and portable imaging devices
